Little Wing
Track Rocket
Massive stiffness under power and confidence inspiring handling.

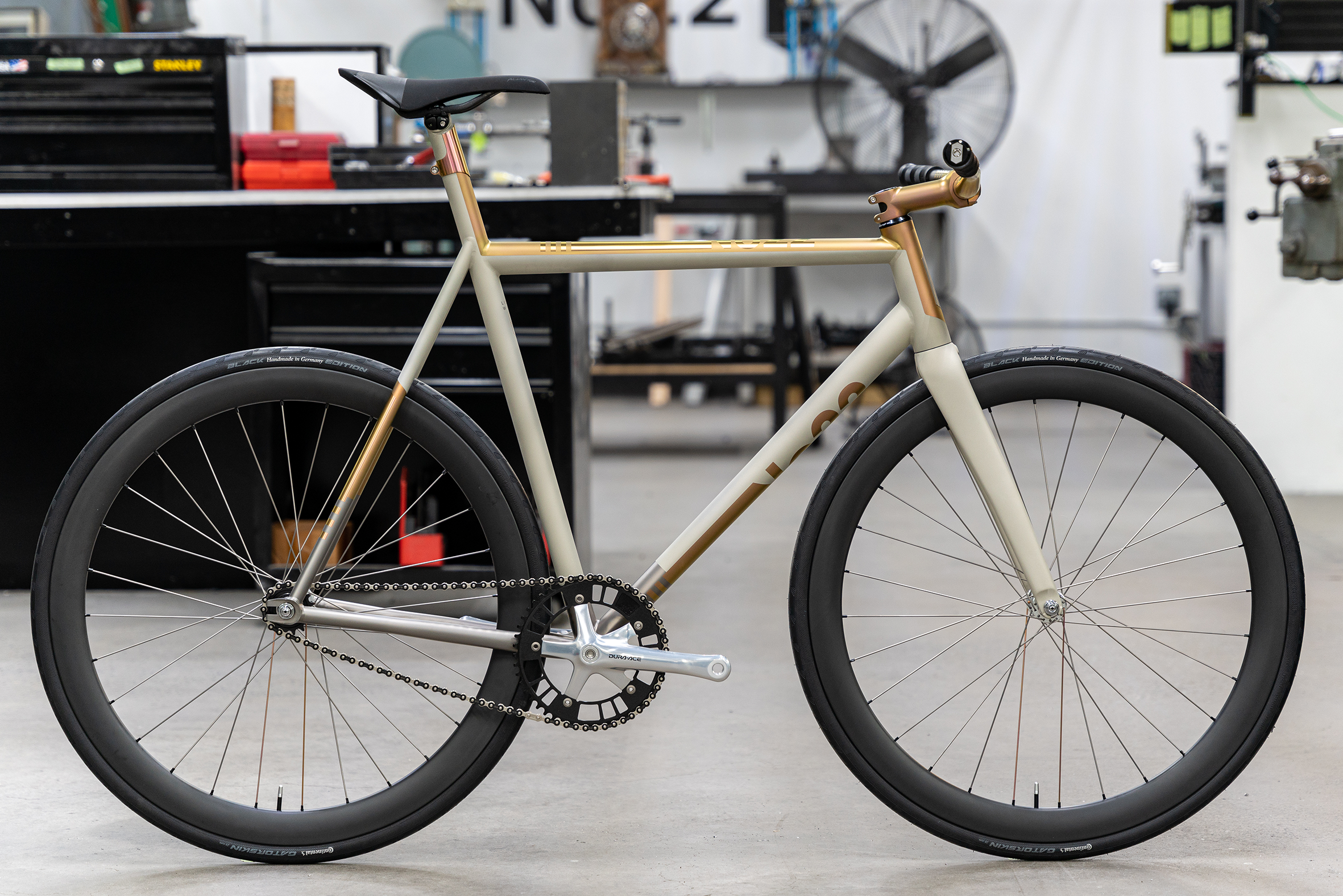

The No. 22 Little Wing
There is a raw purity that makes turning the cranks on a track bike unlike any other cycling experience. The mechanics of a bike distilled to its bare essentials. Our Little Wing frame condenses the best elements of contemporary track frames into a stunning, addictively fast package

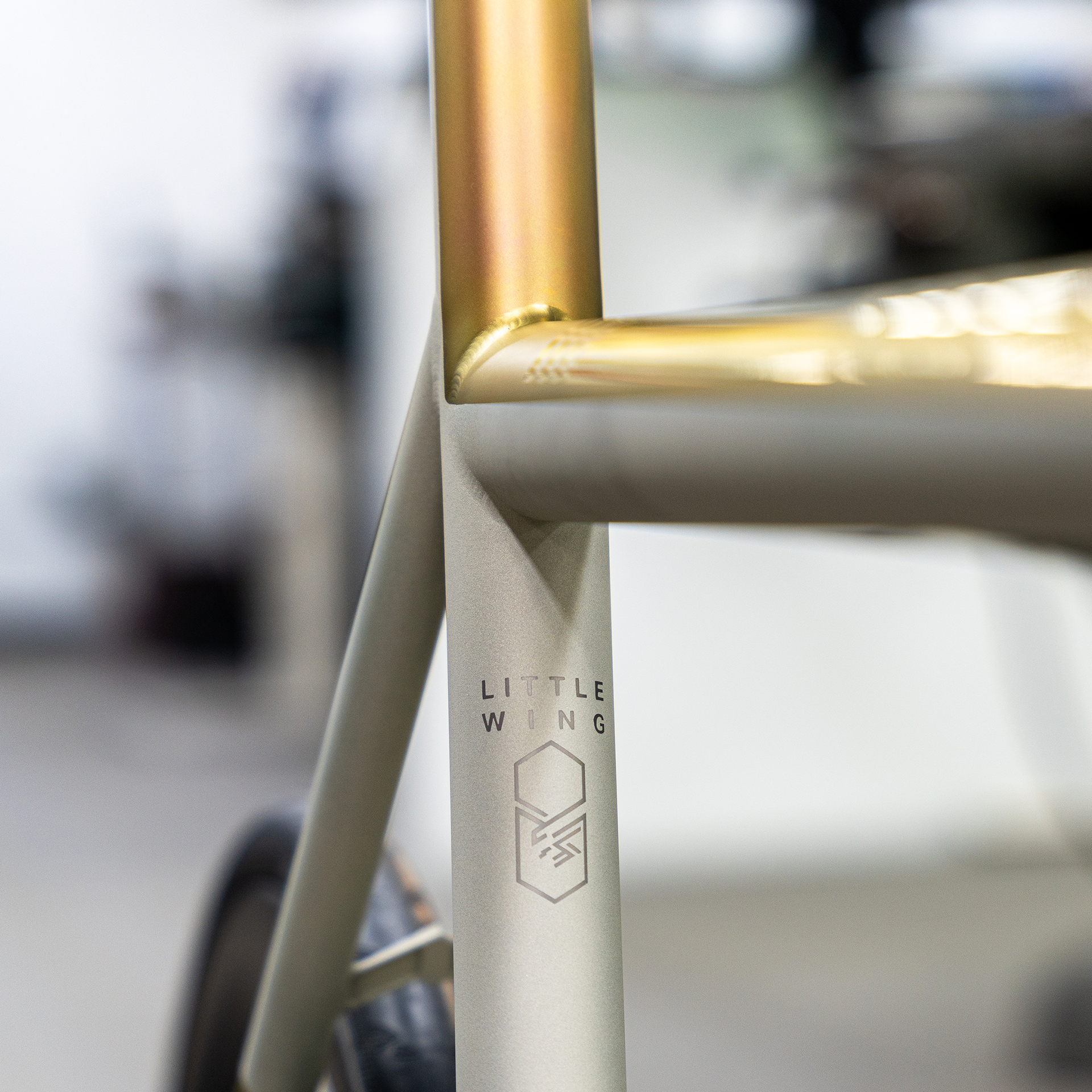

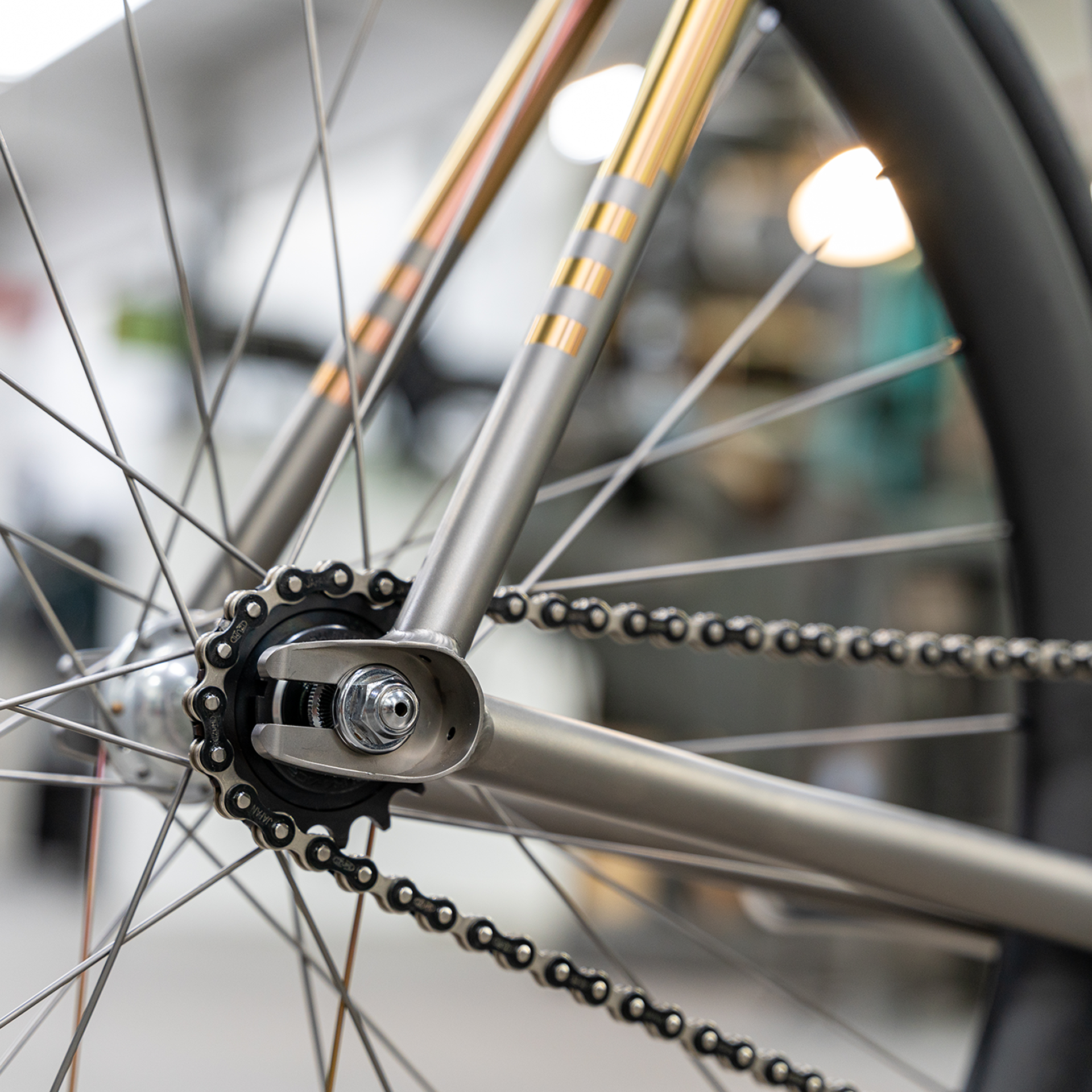

Power transfer and tuned handling suited for both the boards and the roads were at the top of our priorities when designing the Little Wing. The frame’s stout stays, oversized head tube, large diameter top and down tubes and integrated seat mast work together to keep all contact points firmly connected and instantly responsive under hard efforts.
Optional Finishes
Make your No. 22 truly yours. In addition to our standard raw finish, every No. 22 is available in ten optional anodized finishes. Our unique anodizing process gives us the widest range of anodized titanium colours available
Feature Rich
The Little Wing includes as standard what most builders charge extra for. Every Little Wing includes:
- Oversized 44mm head tube
- Brushed and blasted frame graphics, with no decals or stickers
- Ten year warranty against manufacturing defects
- English threaded bottom bracket shell
Details Matter
Complete your Little Wing build with a range of thoughtful finishing details, including:
- Titanium bottle cages finished to match (when frame is equipped with water bottle bosses)
- No. 22 aluminum stem, custom painted to match the fork

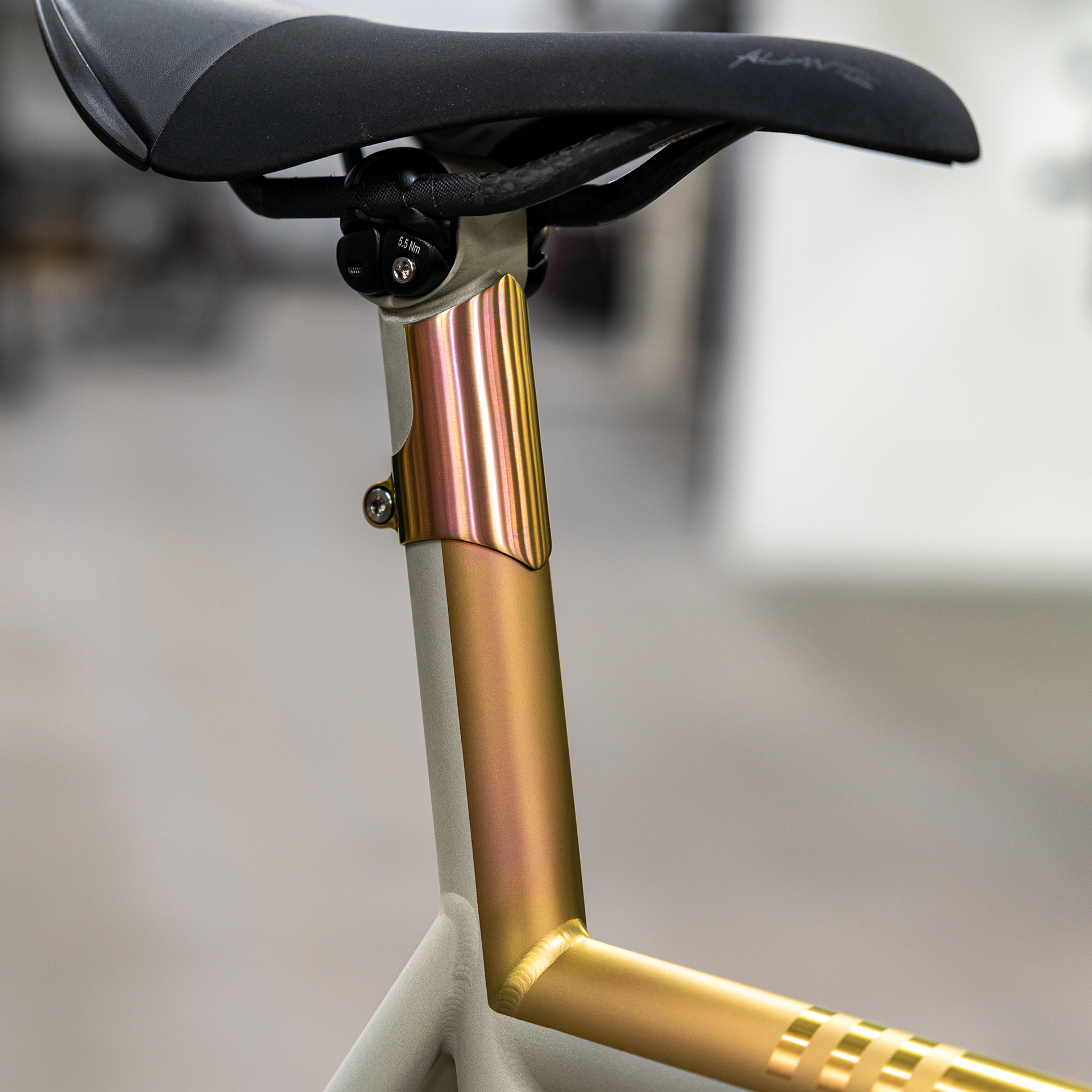

- Your choice of 0-offset or 22.5mm setback seatmast topper
Specifications
| Brake Type | Optional |
| Tire Clearance | 28mm |
| Front Axle Spacing | 100mm |
| Rear Axle Spacing | 120mm |
| Fork | Columbus Pista Leggera: 35mm offset, 365mm axle-to-crown |
| Bottom Bracket Shell | BSA threaded, 68mm wide |
| Seatpost Size | N/A - integrated seat mast |
| Headset Type | 44mm ID head tube |
| Fender Mounts | None |
Geometry Chart
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Effective top tube length (mm) | 515 | 525 | 540 | 555 | 575 | 590 |
| Seat tube, center-center (mm) | 475 | 495 | 520 | 540 | 565 | 585 |
| Head tube length (mm) | 110 | 130 | 150 | 170 | 190 | 210 |
| Seat tube angle (deg) | 75.5 | 75 | 74.5 | 74.5 | 74 | 74 |
| Head tube angle (deg) | 73 | 73 | 73 | 73 | 73 | 73 |
| Front center (mm) | 569 | 576 | 587 | 602 | 617 | 633 |
| Chain stay length (mm) | 393 | 393 | 393 | 396 | 396 | 396 |
| BB drop (mm) | 58 | 58 | 58 | 58 | 58 | 58 |
| Reach (mm) | 383 | 384 | 389 | 398 | 408 | 418 |
| Stack (mm) | 504 | 523 | 542 | 561 | 580 | 600 |
| Standover (700x23mm tires) | 761 | 781 | 802 | 821 | 842 | 864 |
Available Finishes
All No. 22 frames are finished completely in-house, and are available in a broad range of finish options from classic Raw, to colorful Anodized, to stunning Cerakote and Anodized combinations.

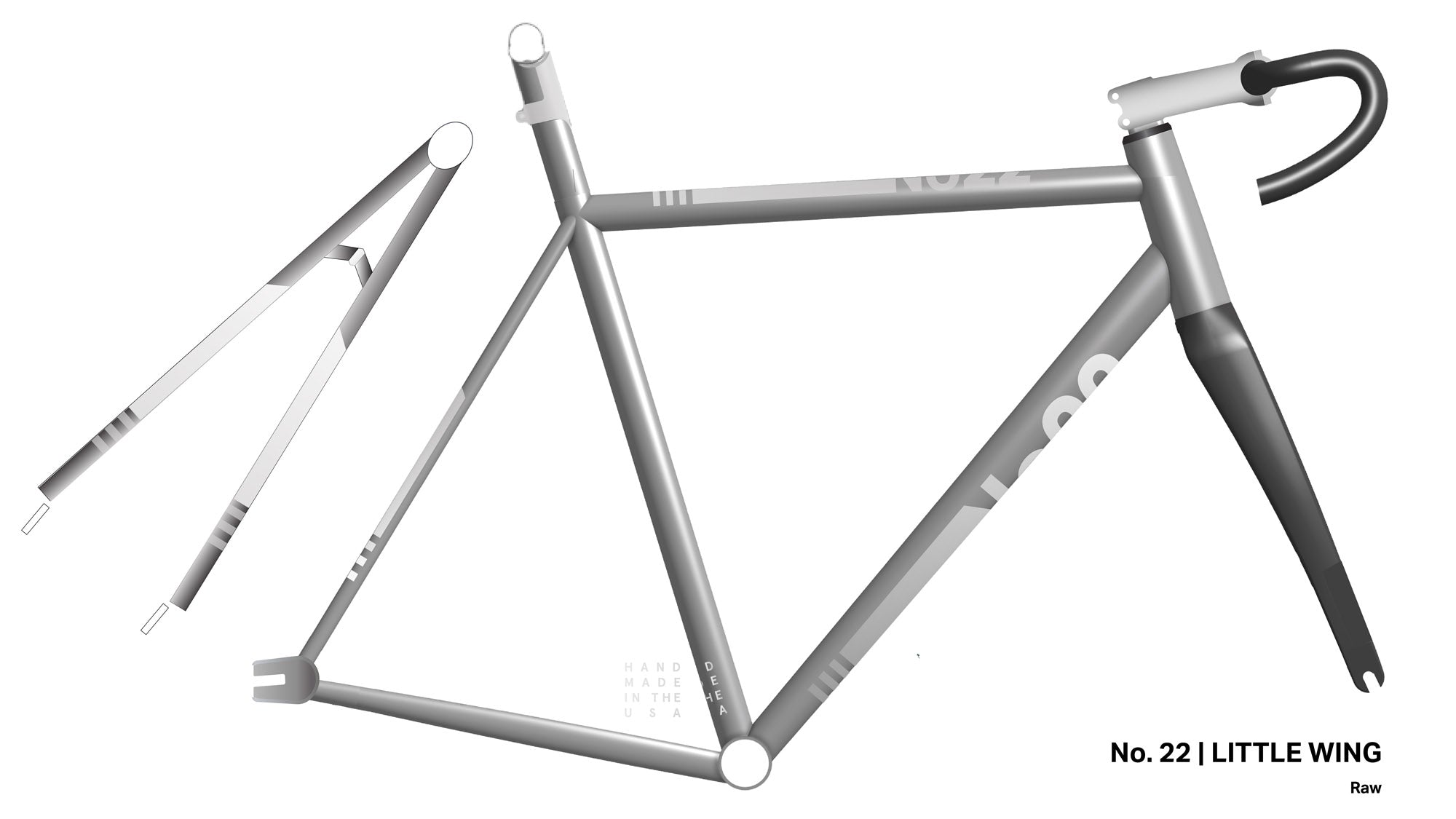

Raw Finish

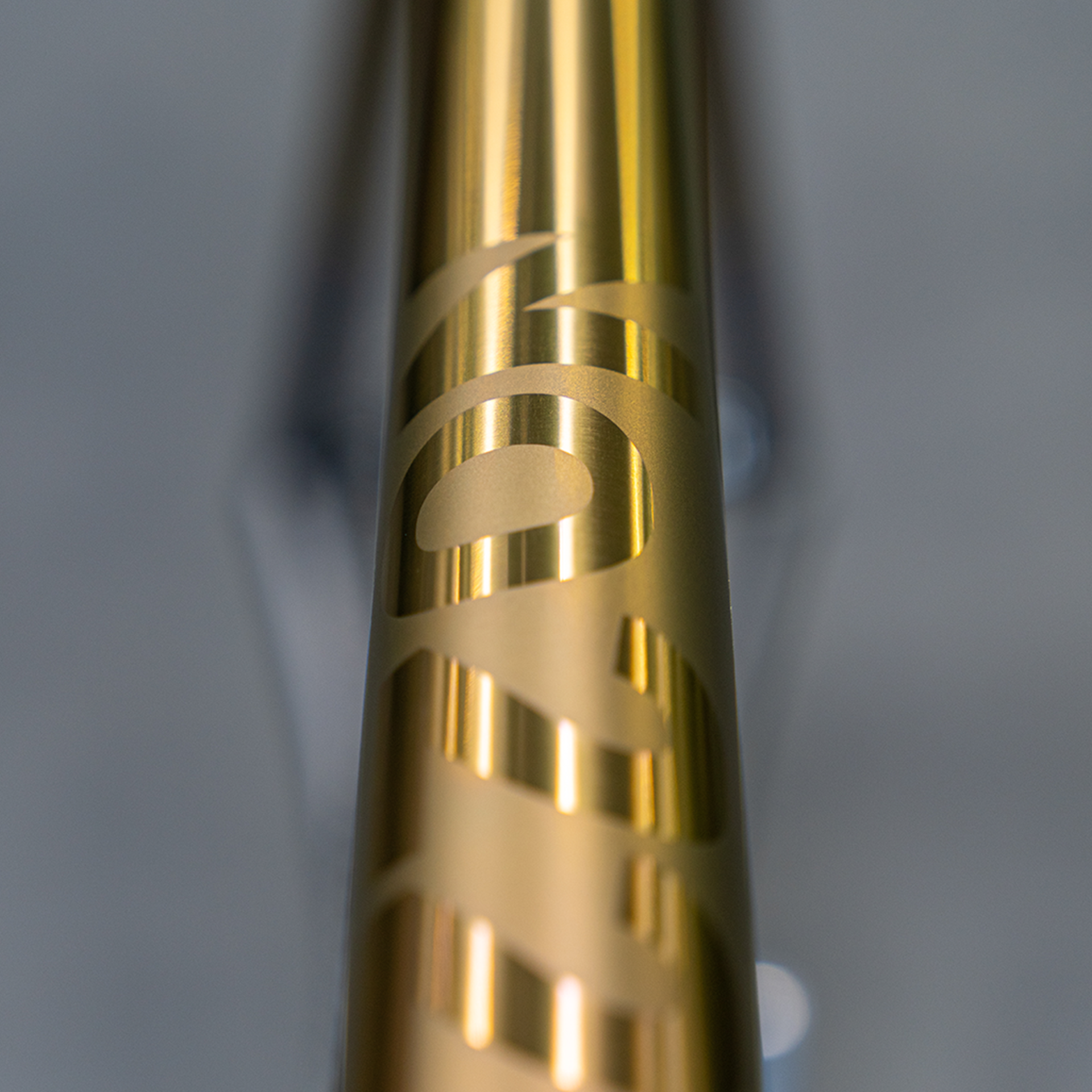

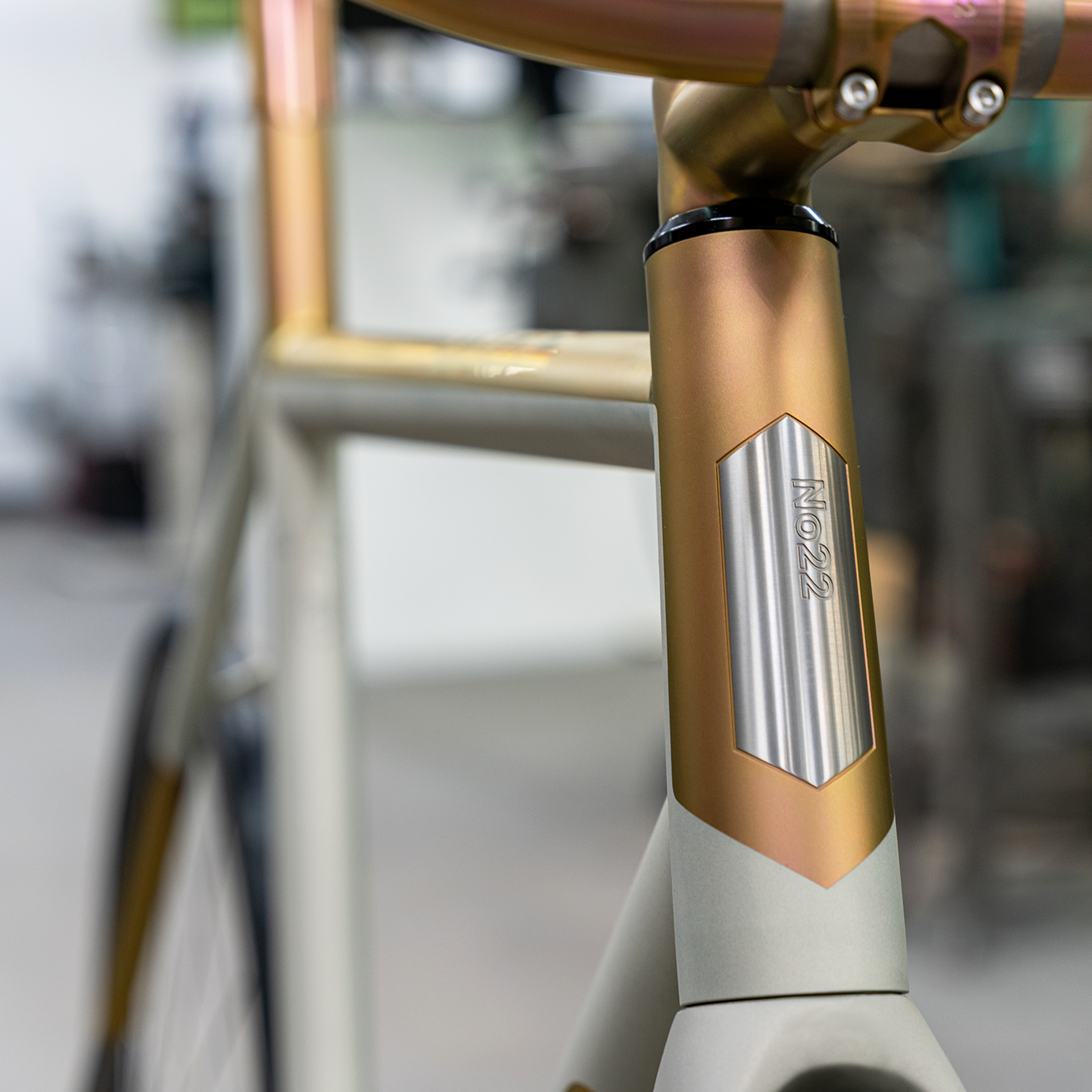

Every No. 22 frame comes with our Raw finish as standard. We never use stickers or decals for our graphics: the raw finish uses a mix of polished and blasted graphics to show off titanium's natural lustre in a timeless, durable way. Frames with Raw graphics include all of the same graphic details as our anodized finishes, but without the color.
Single-Color Anodized Finishes - $550
Blue
Bronze
Electric Blue
Gold

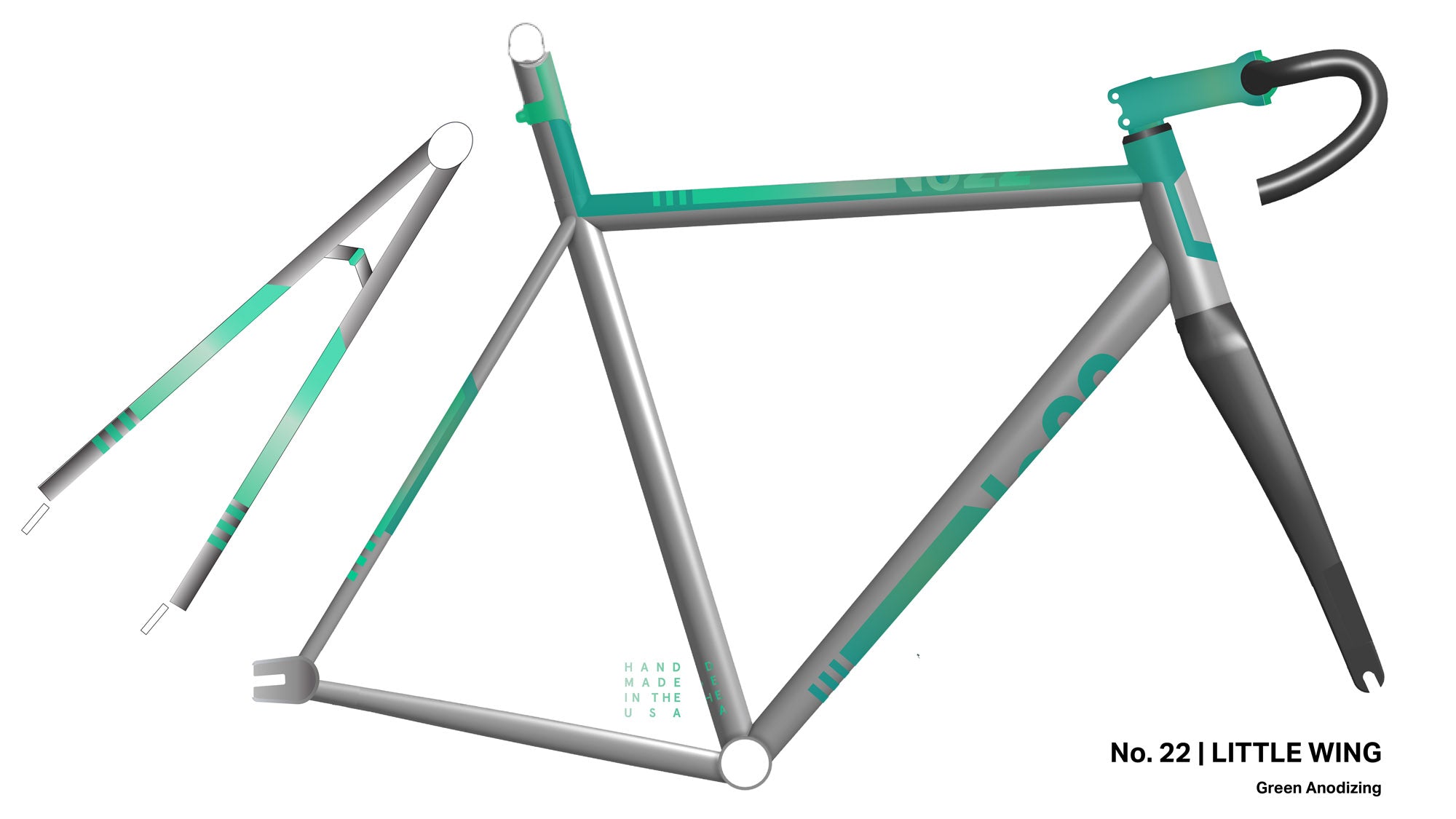

Green

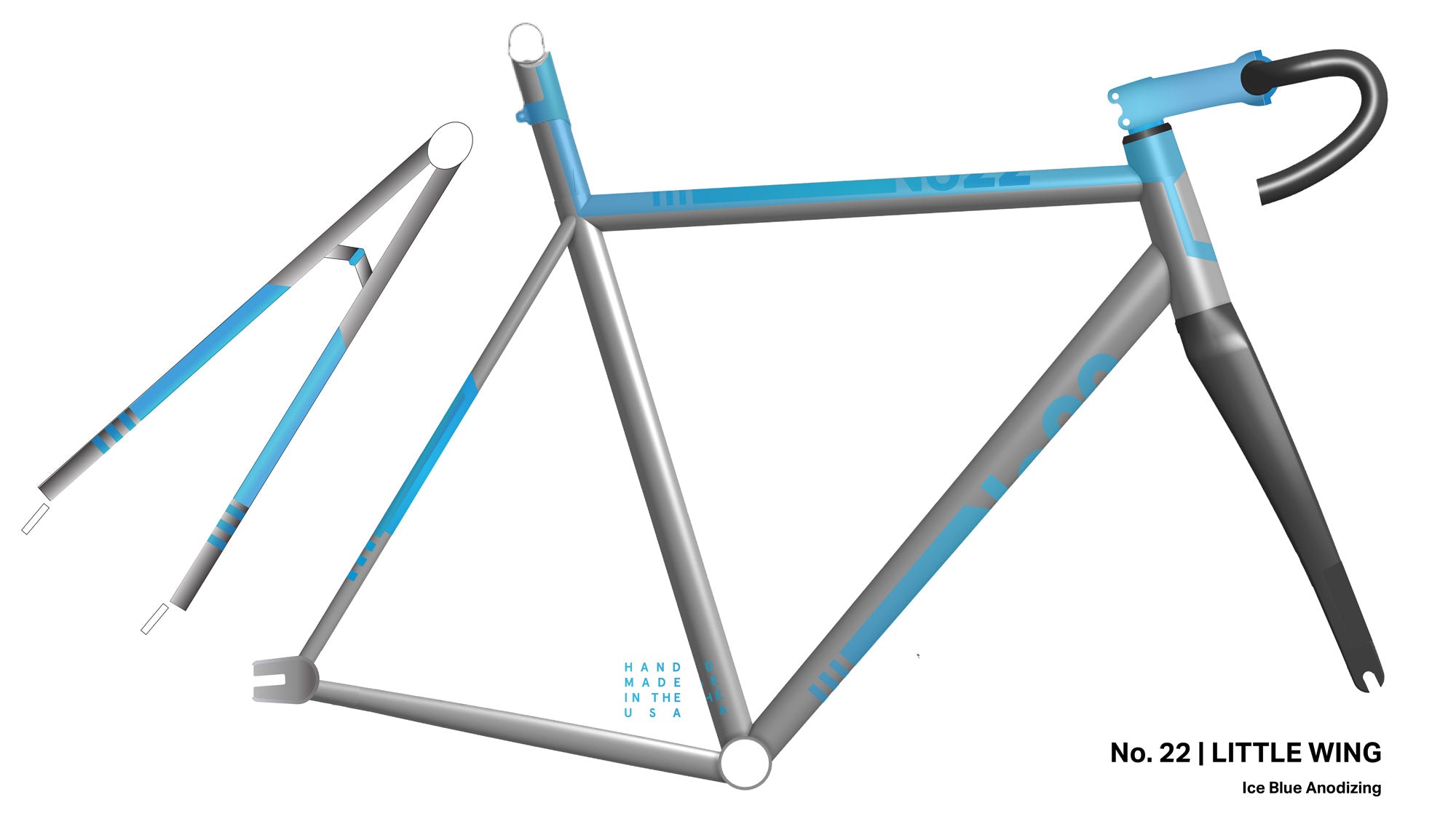

Ice Blue

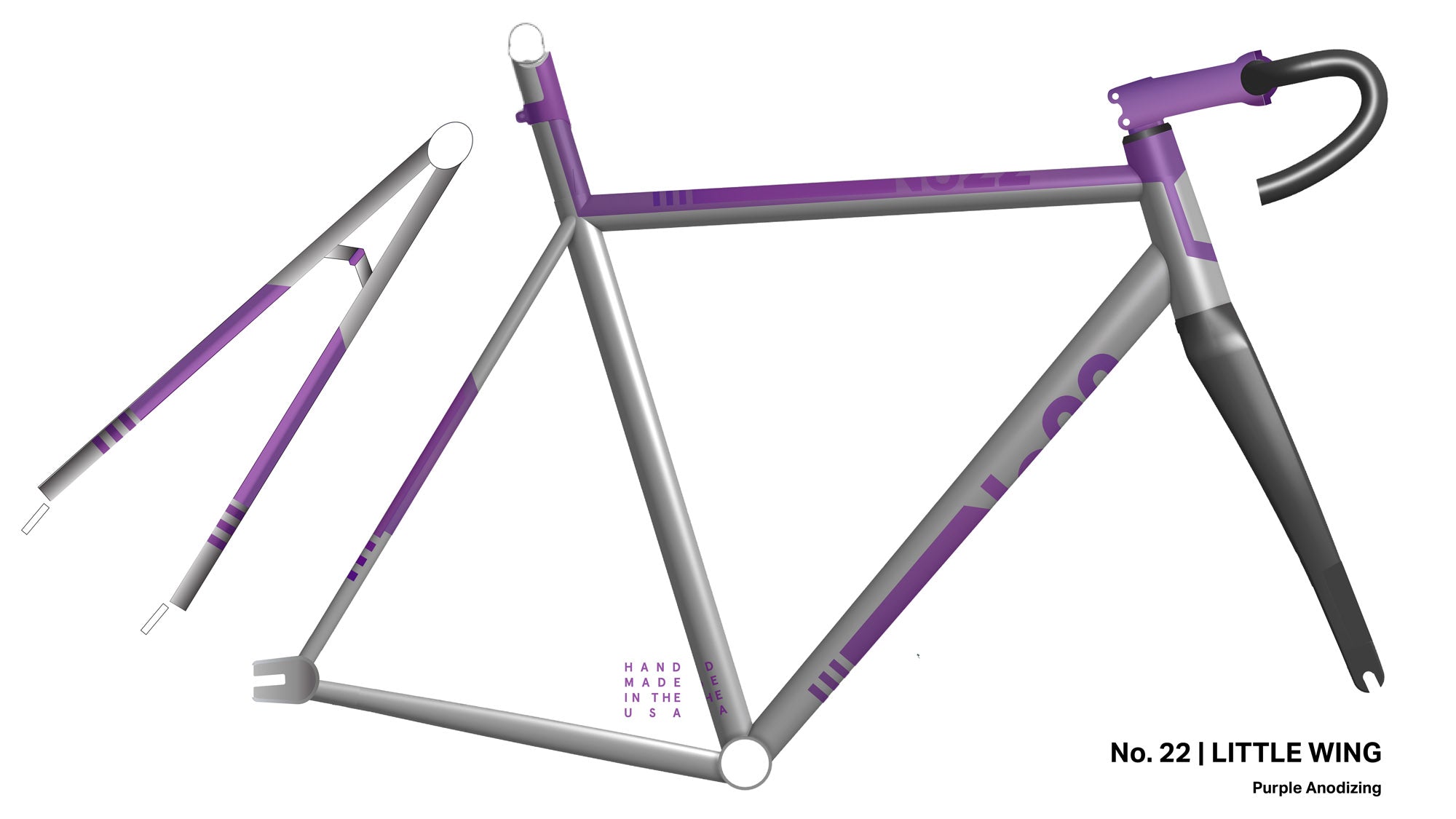

Purple
Turquoise
Rose Gold
Fade Anodized Finishes - $900

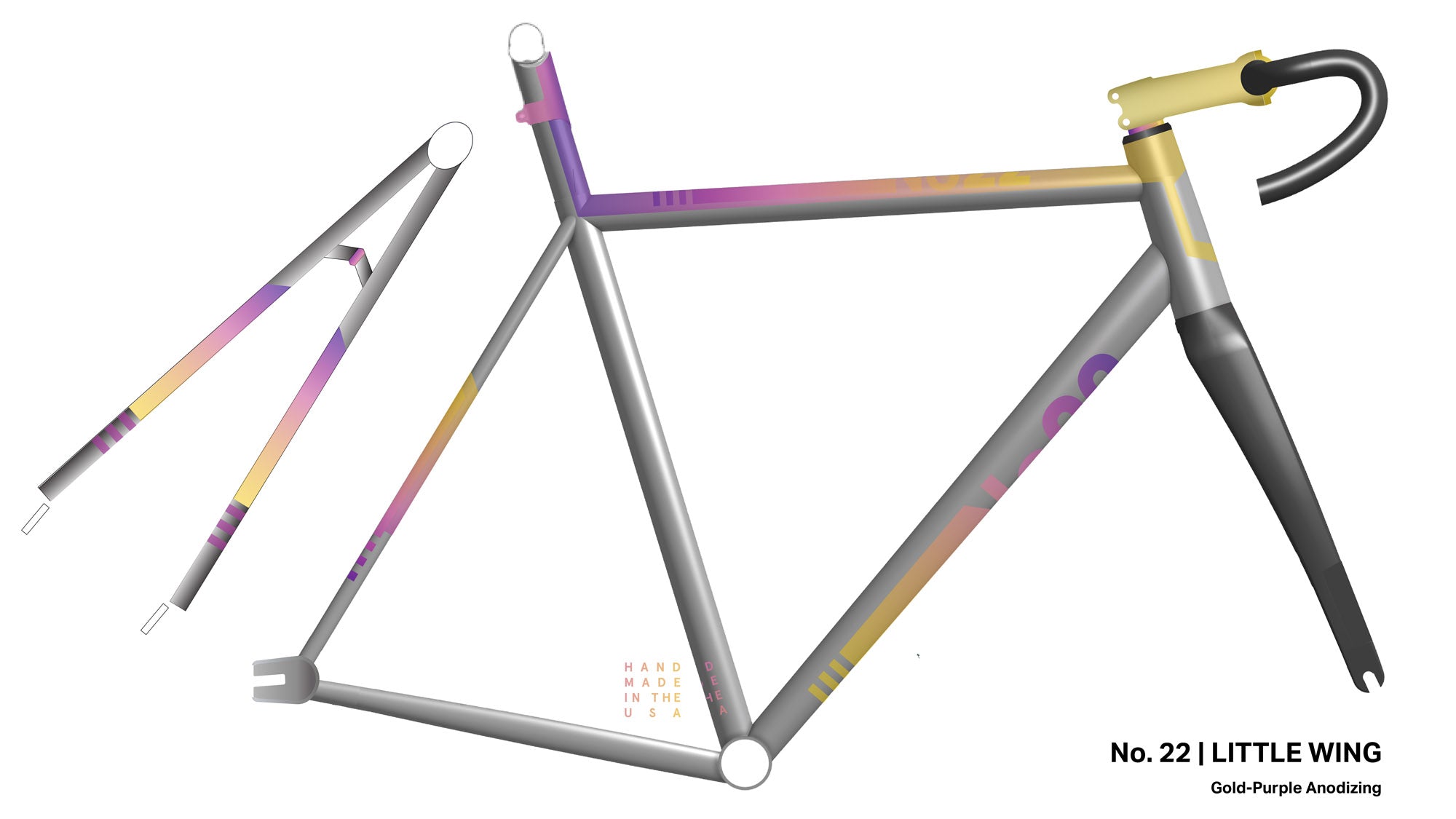

Gold-Purple
Green-Blue
Pink-Purple
Cerakote and Anodized Finishes - $1,500

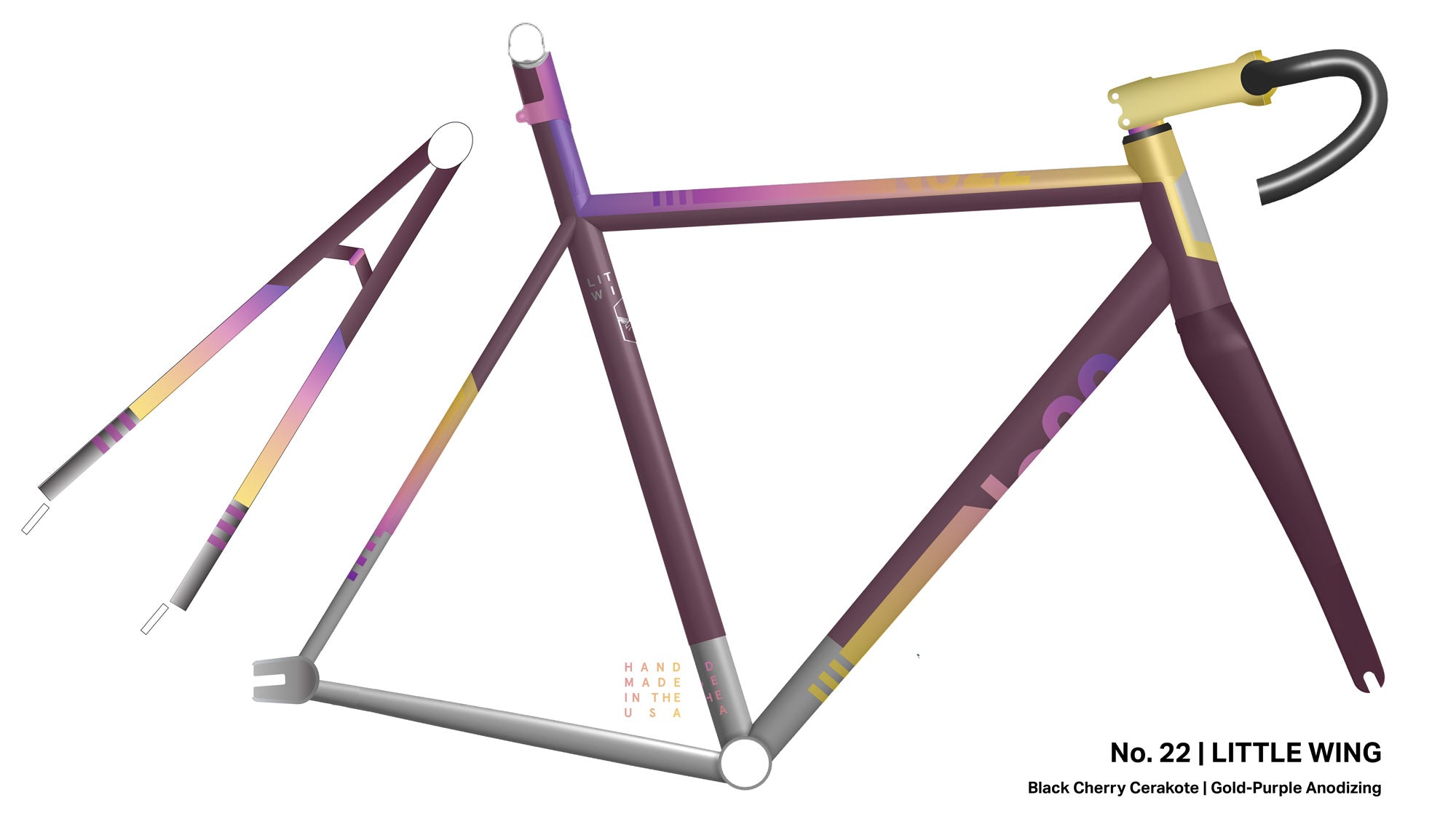

Black Cherry | Gold-Purple

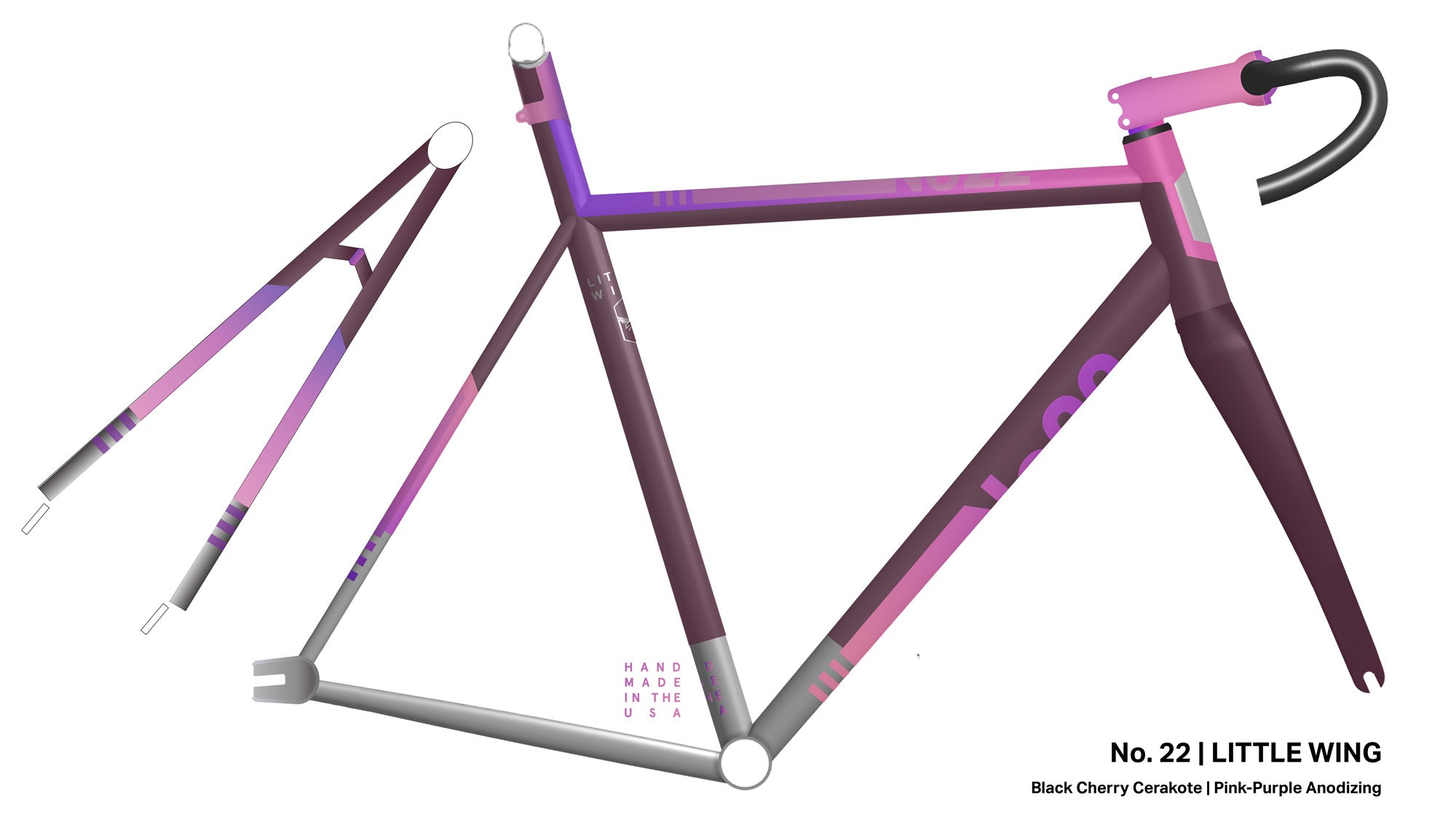

Black Cherry | Pink-Purple

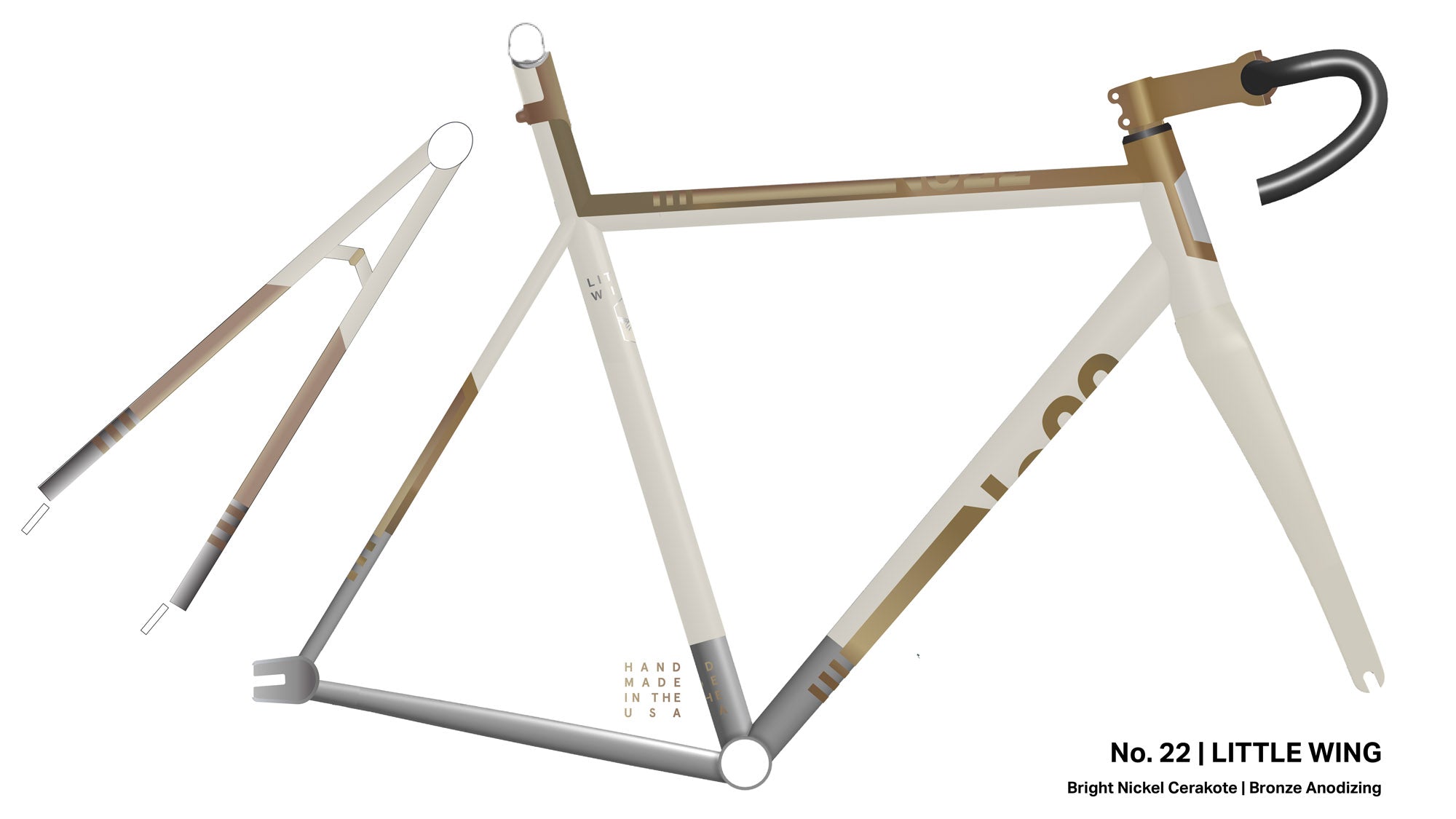

Bright Nickle | Bronze

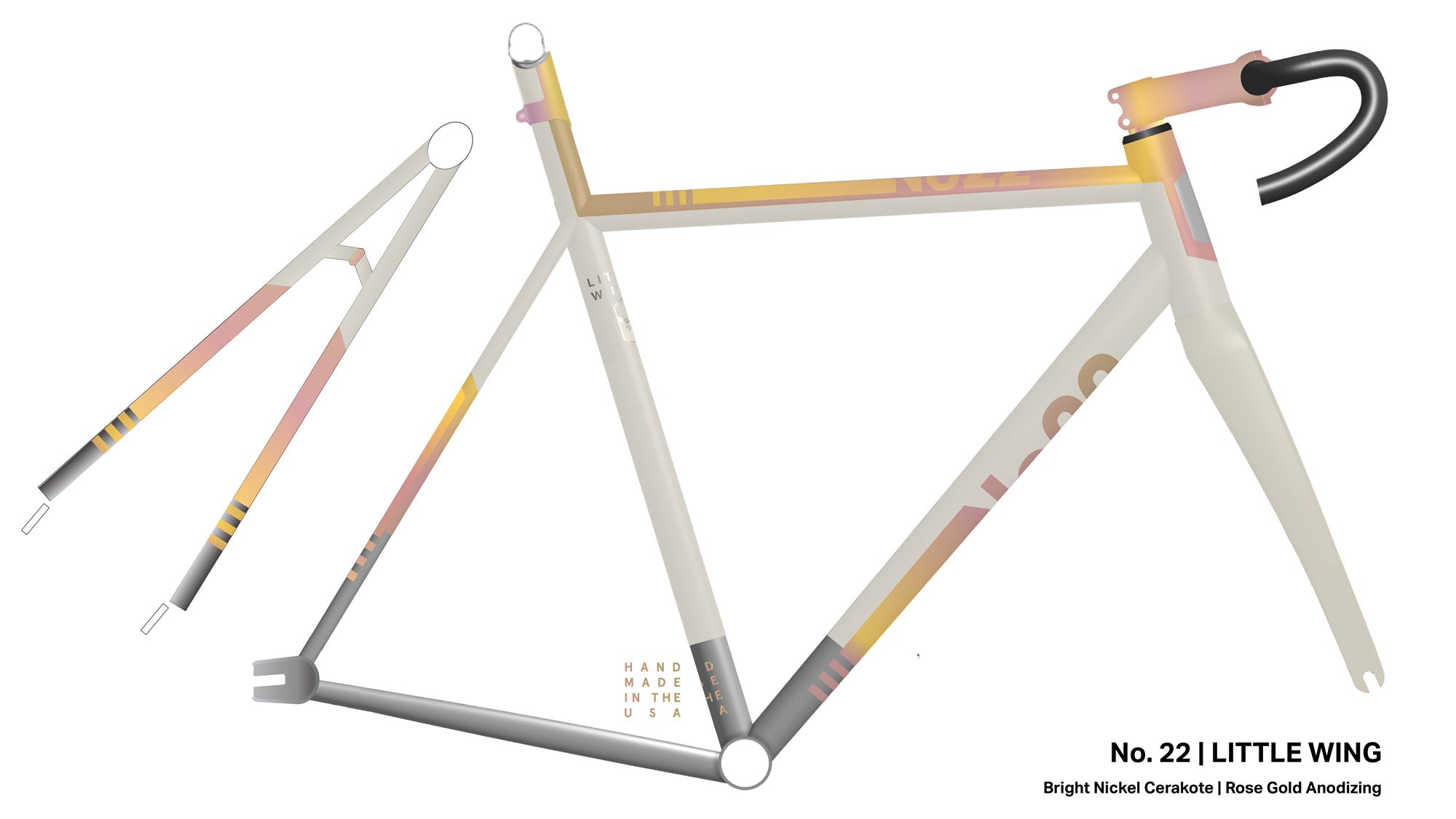

Bright Nickel | Rose Gold

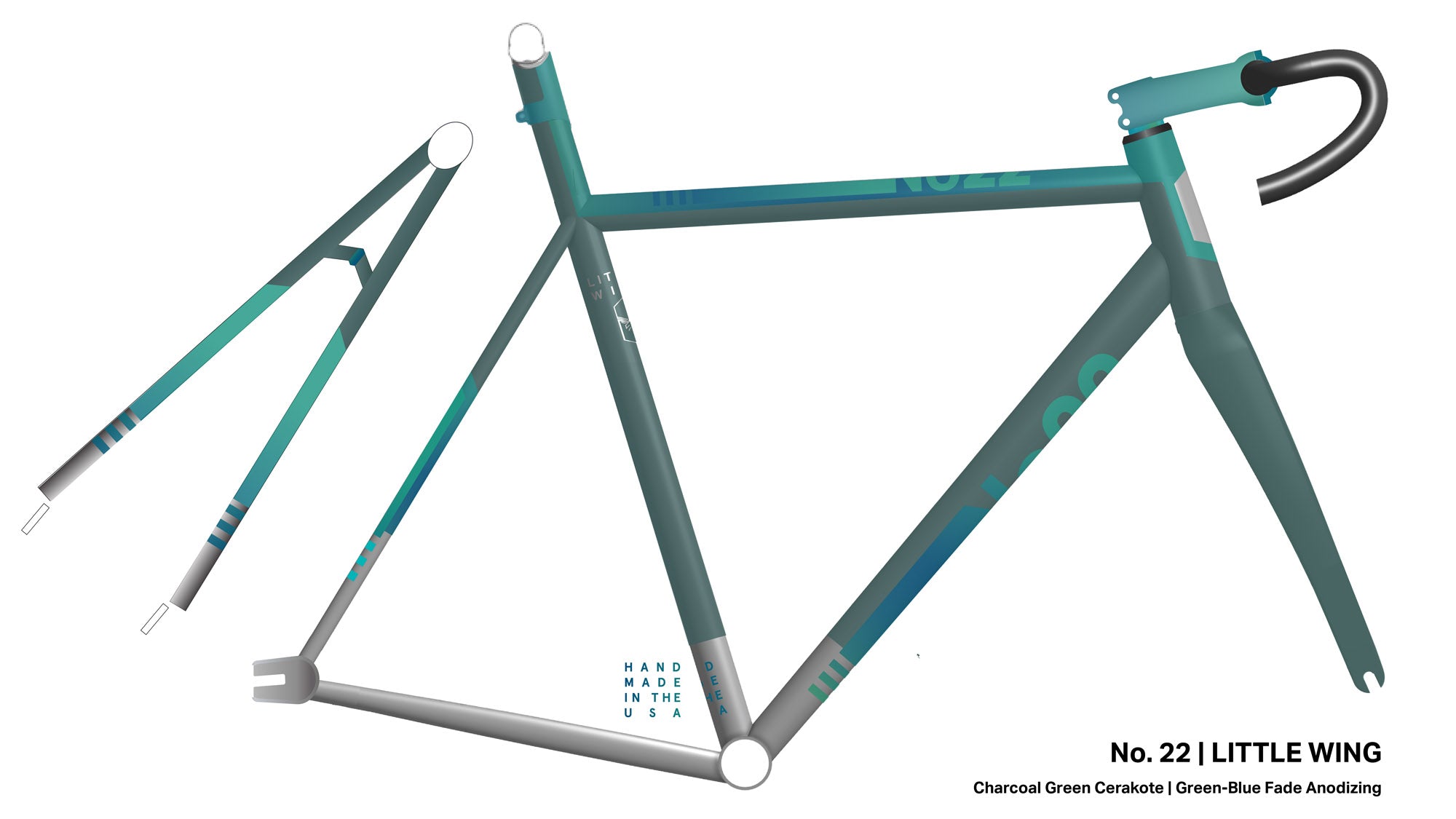

Charcoal Green | Green-Blue
Cobalt | Bronze

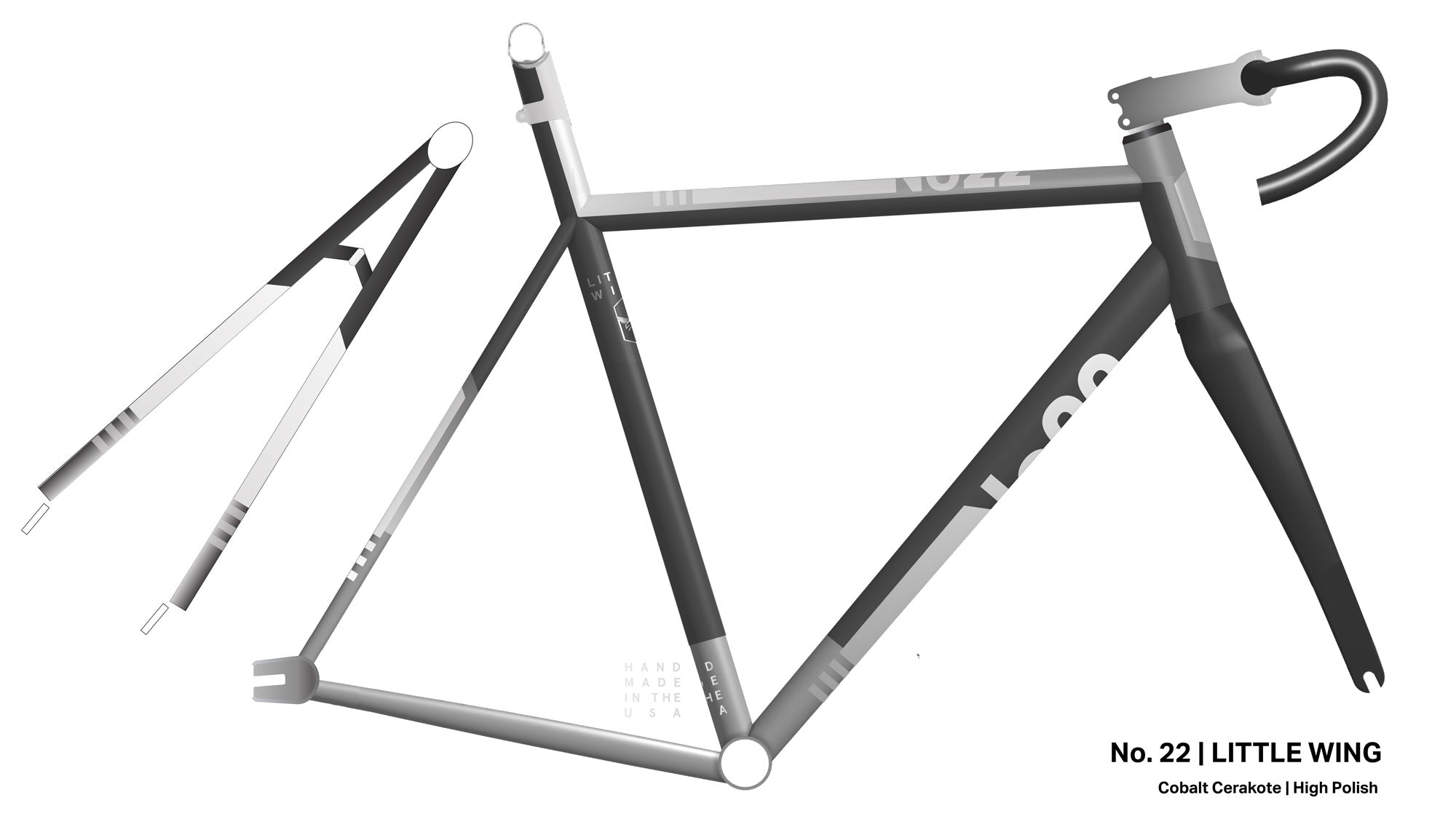

Cobalt | High Polish

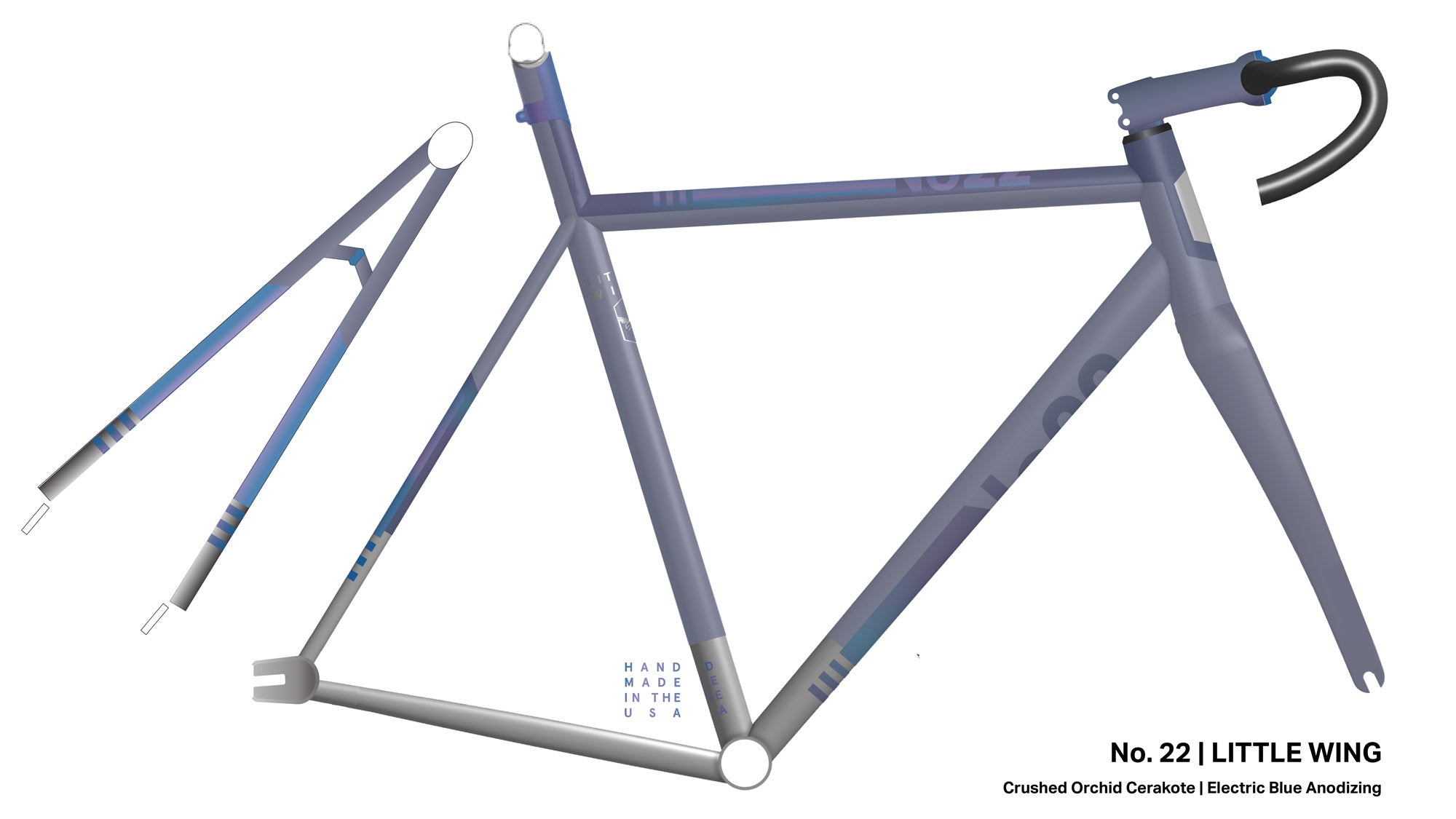

Crushed Orchid | Electric Blue

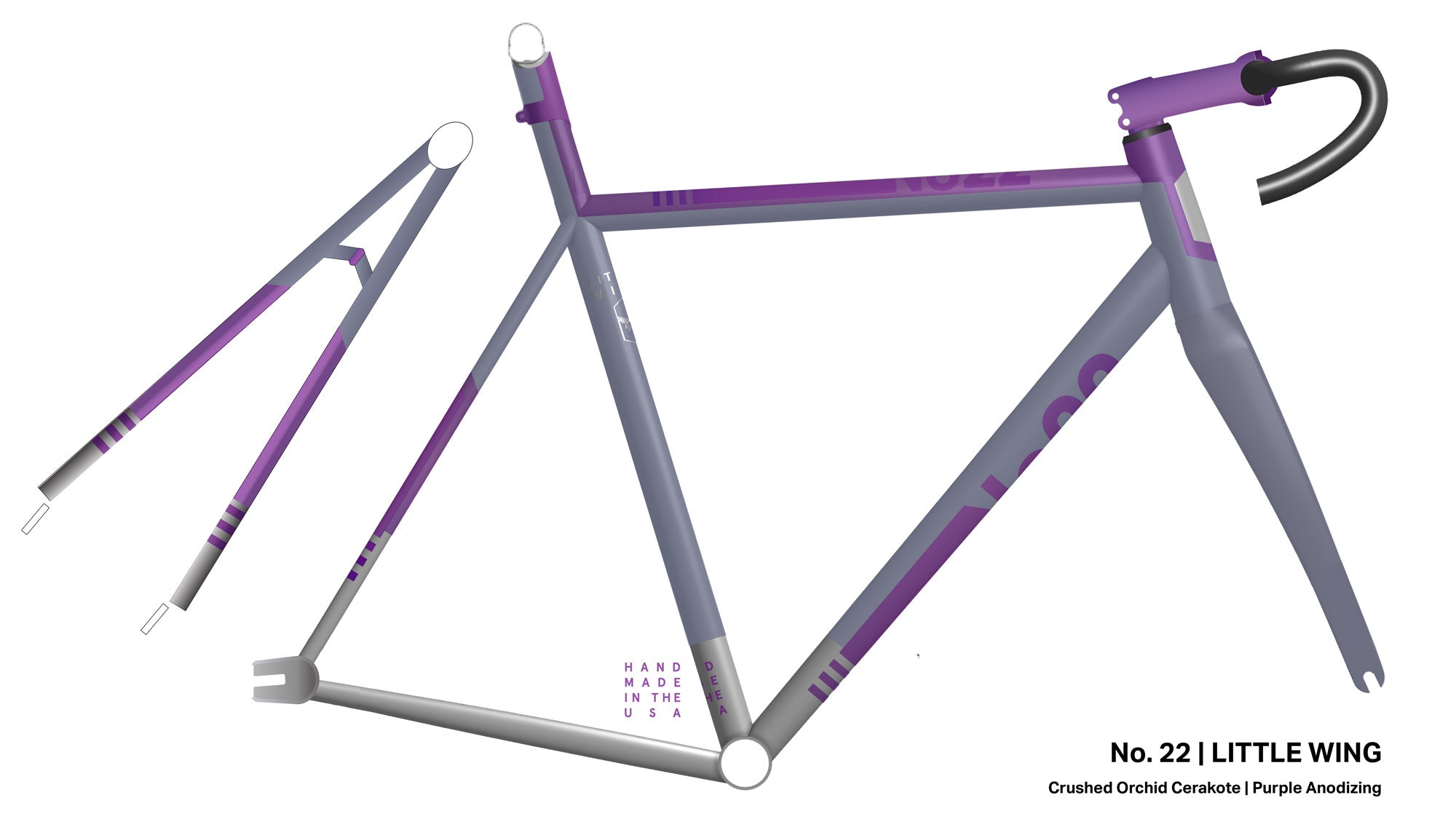

Crushed Orchid | Purple

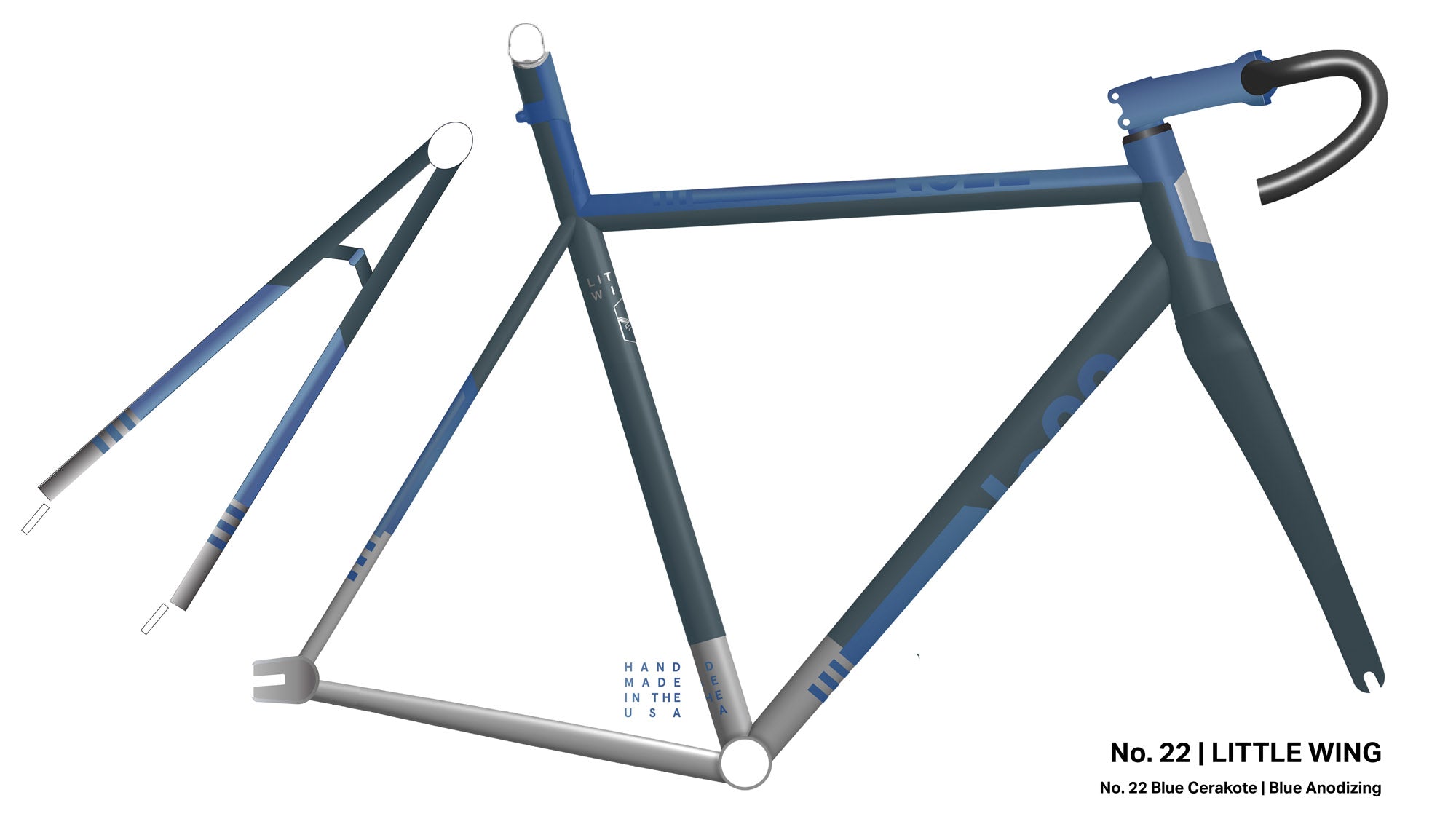

Blue | Blue

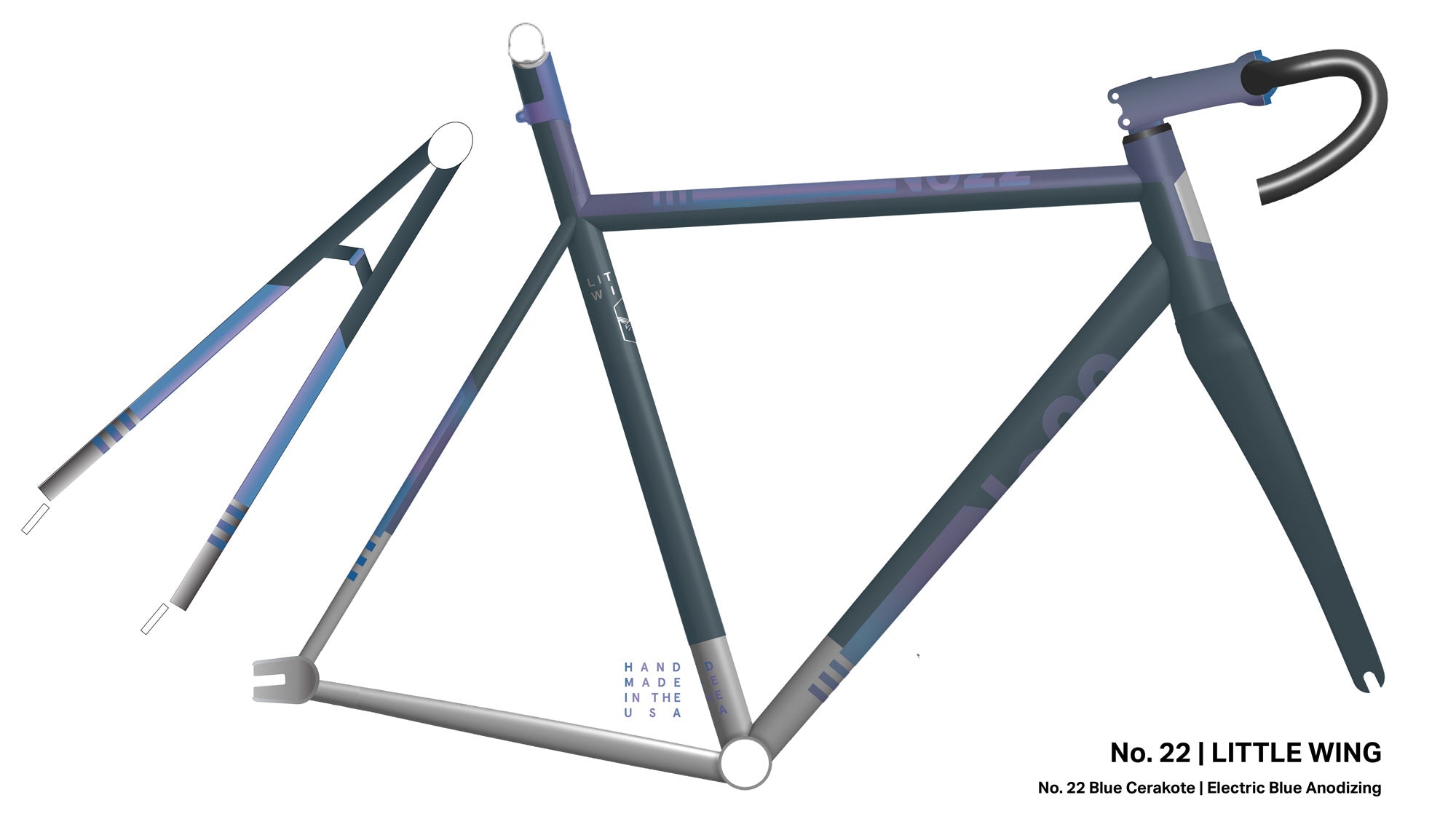

Blue | Electric Blue

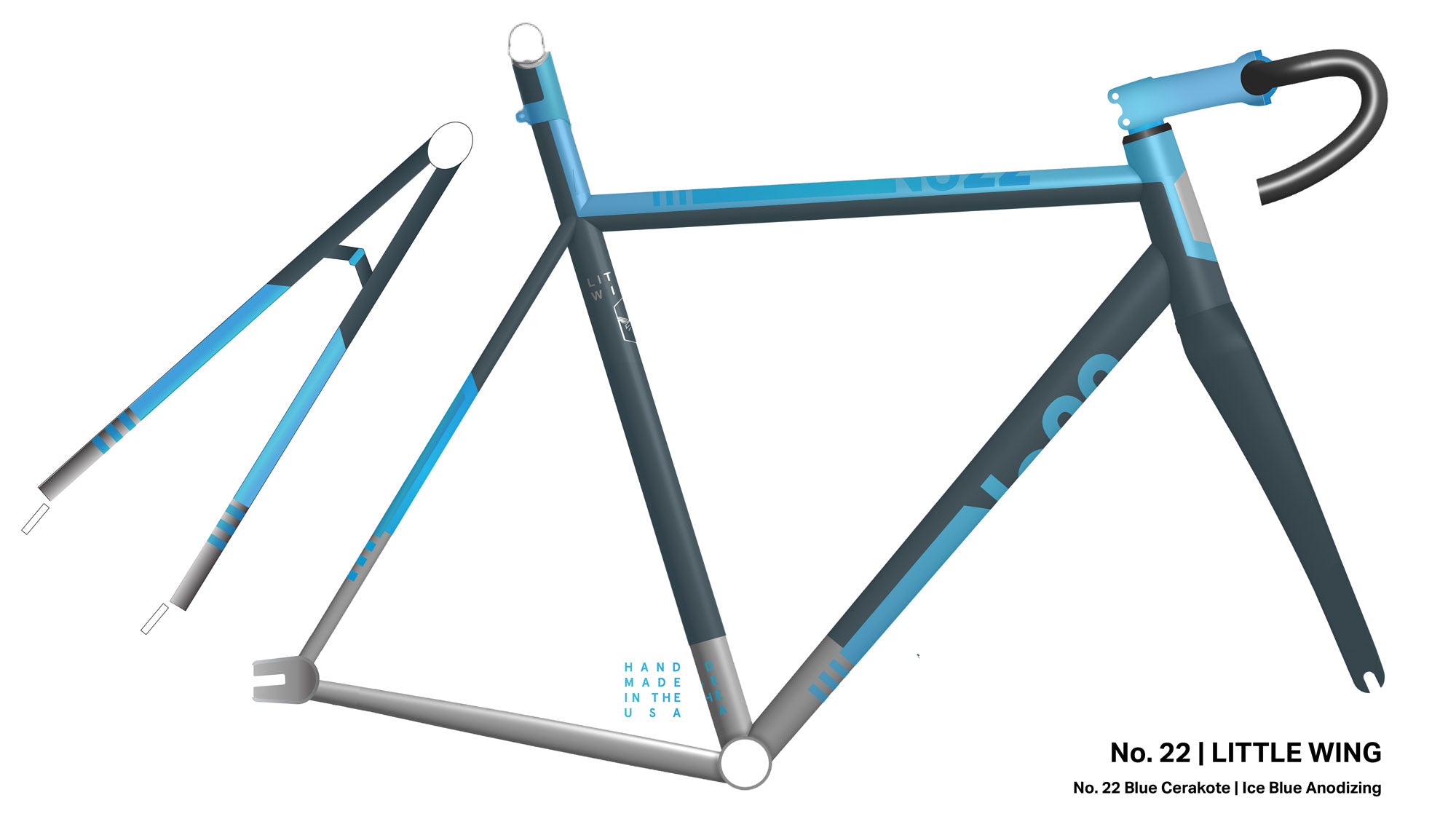

Blue | Ice Blue
Blue | Green-Blue

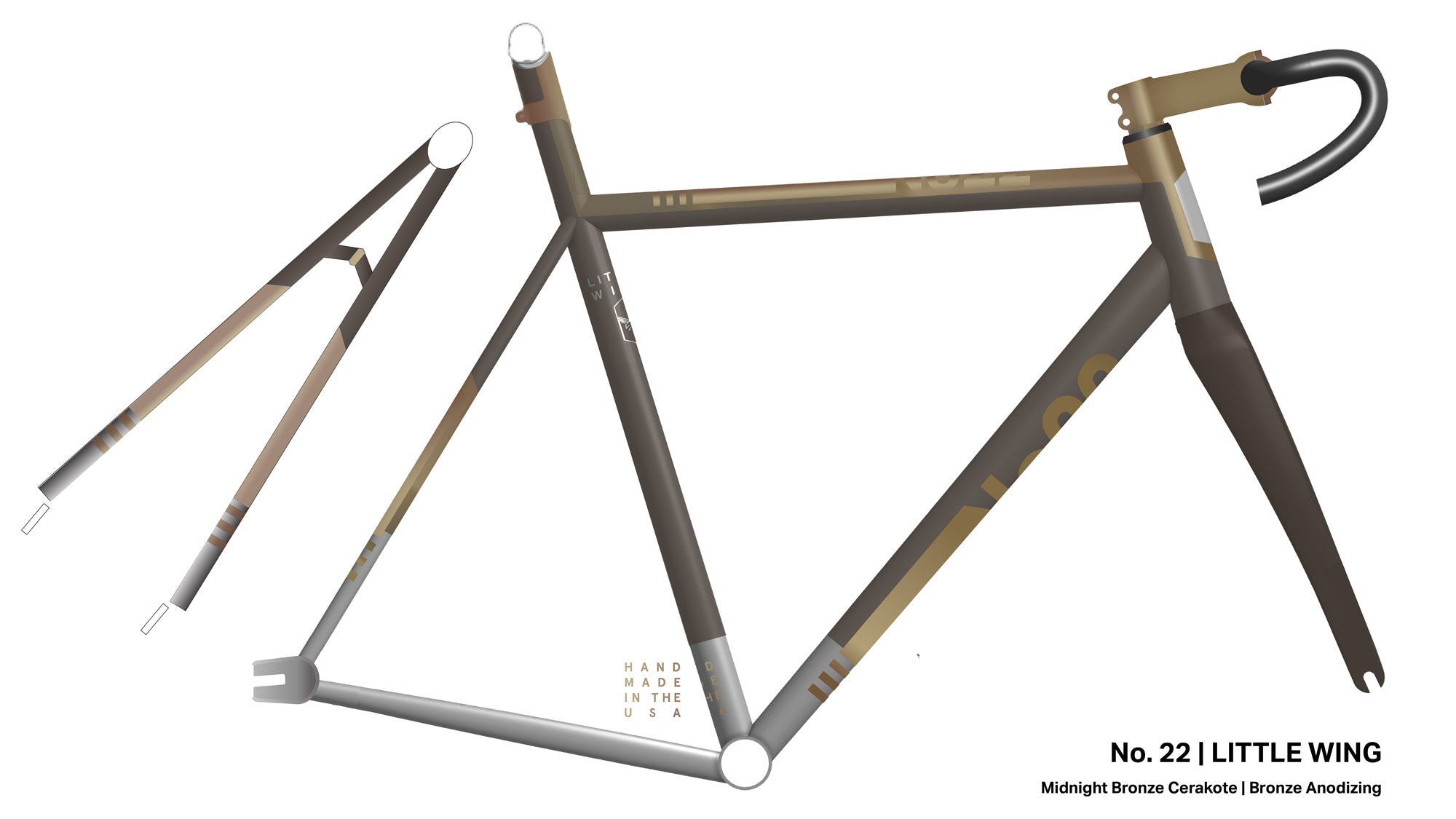

Midnight Bronze | Bronze

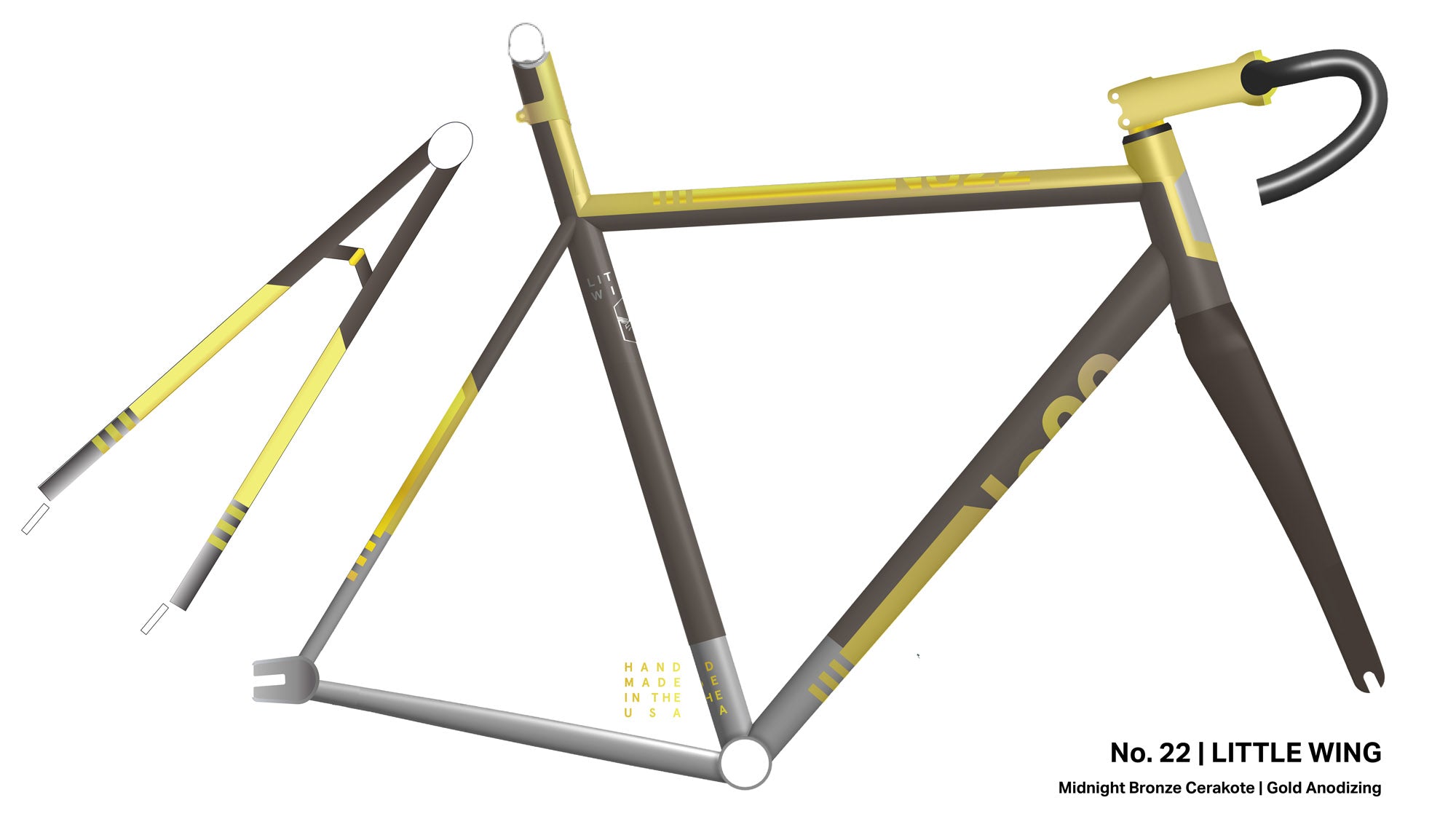

Midnight Bronze | Gold

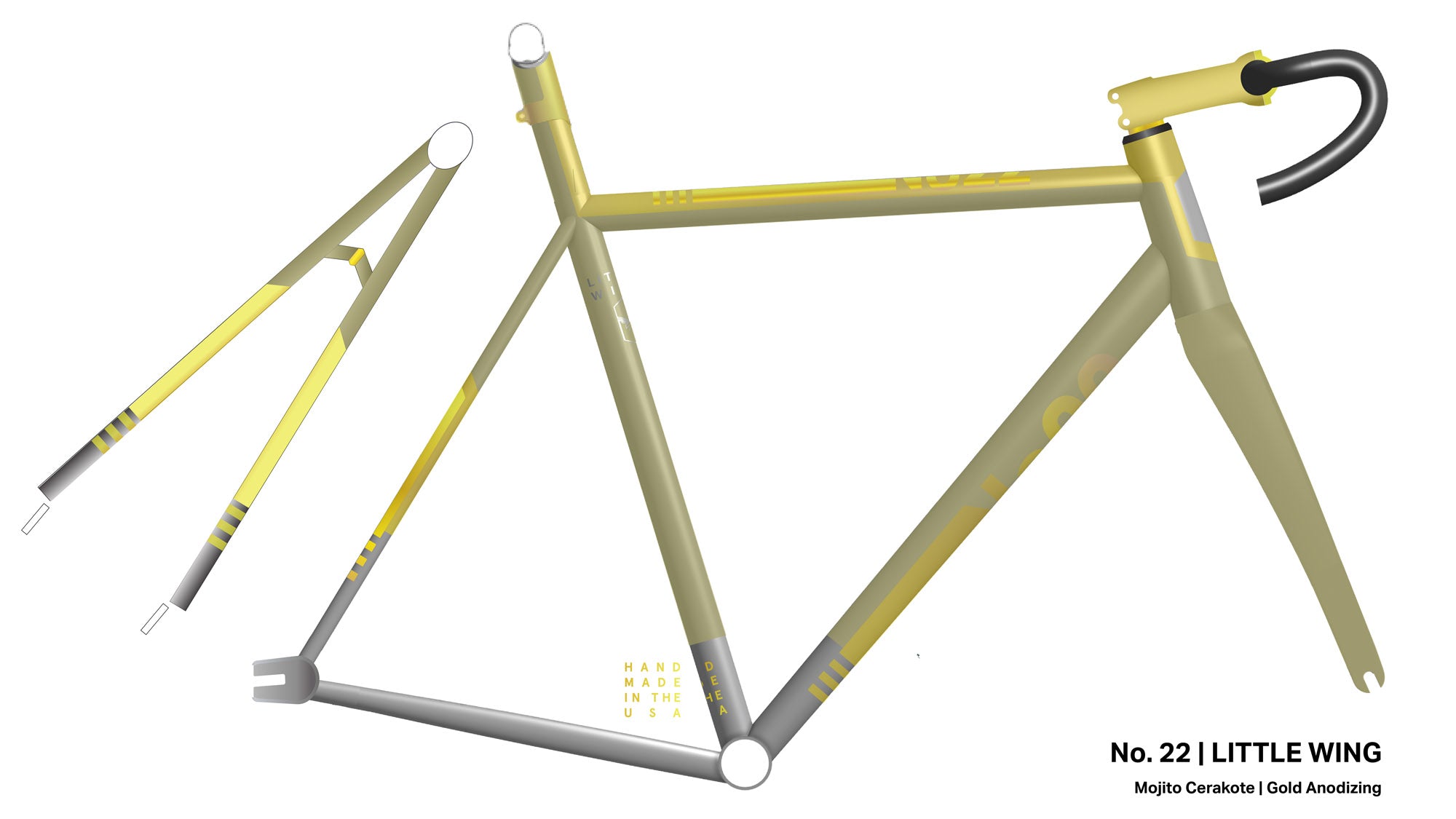

Mojito | Gold

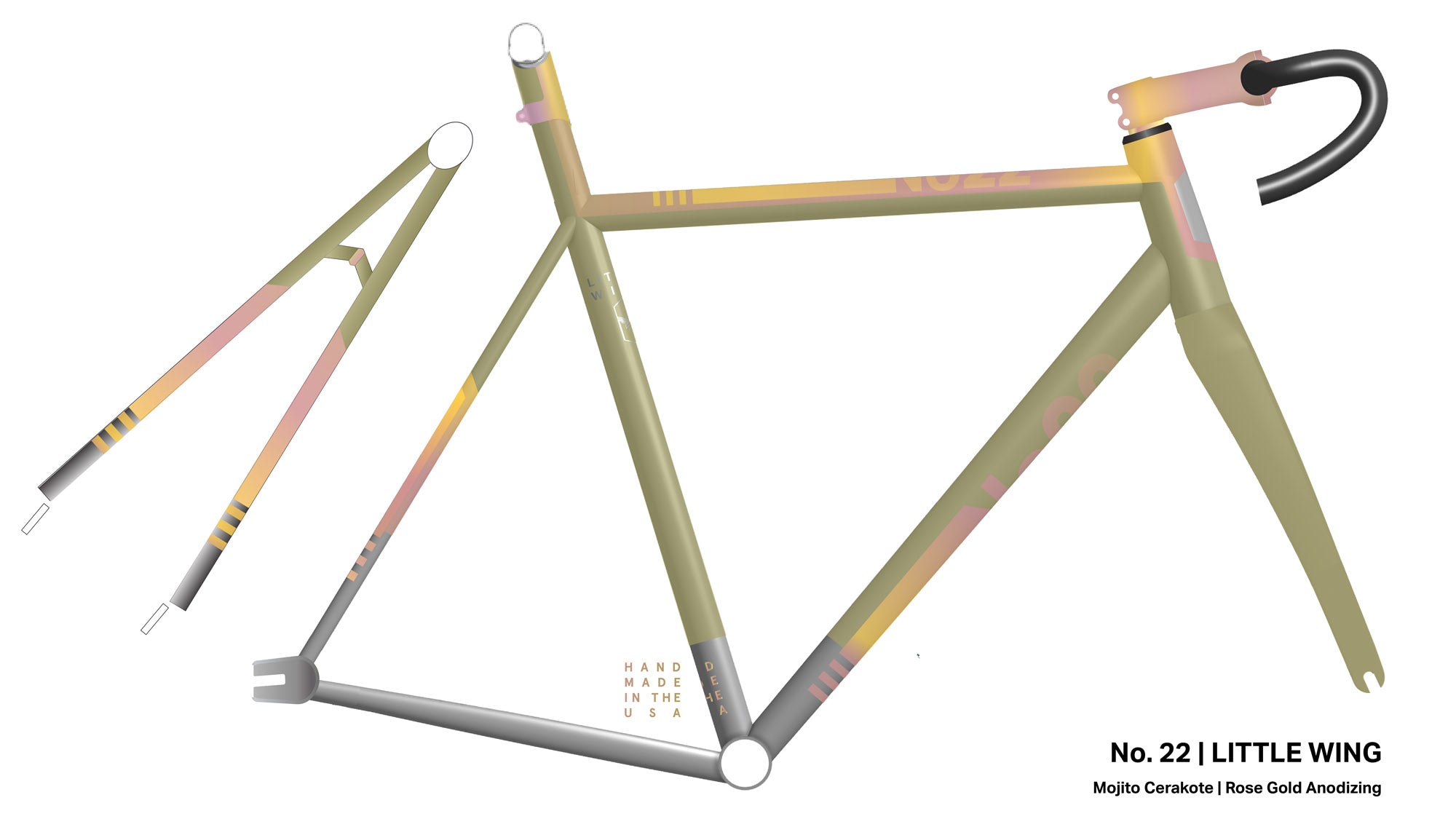

Mojito | Rose Gold
Northern Lights | Green
Northern Lights | Turquoise

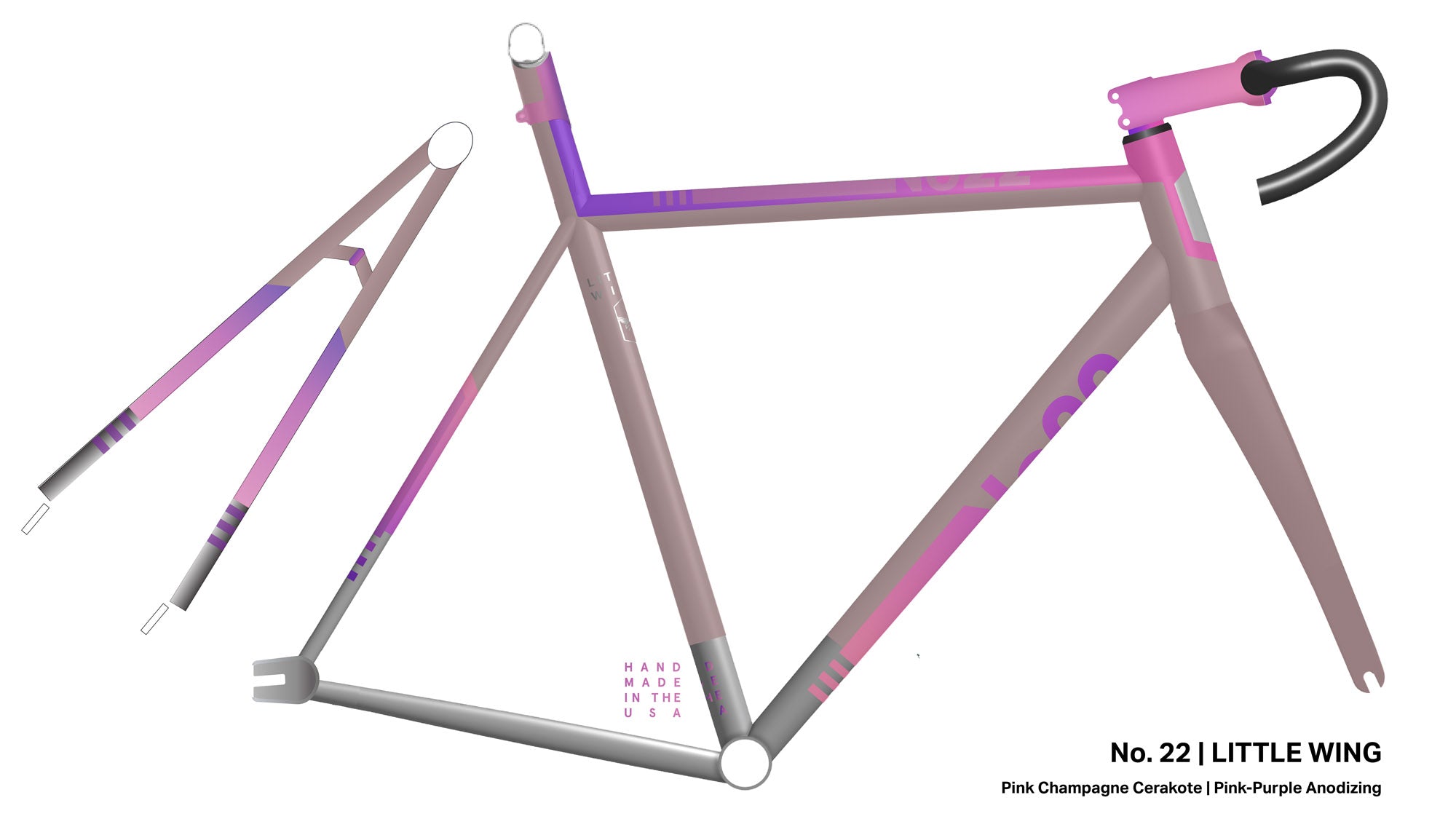

Pink Champagne | Pink-Purple

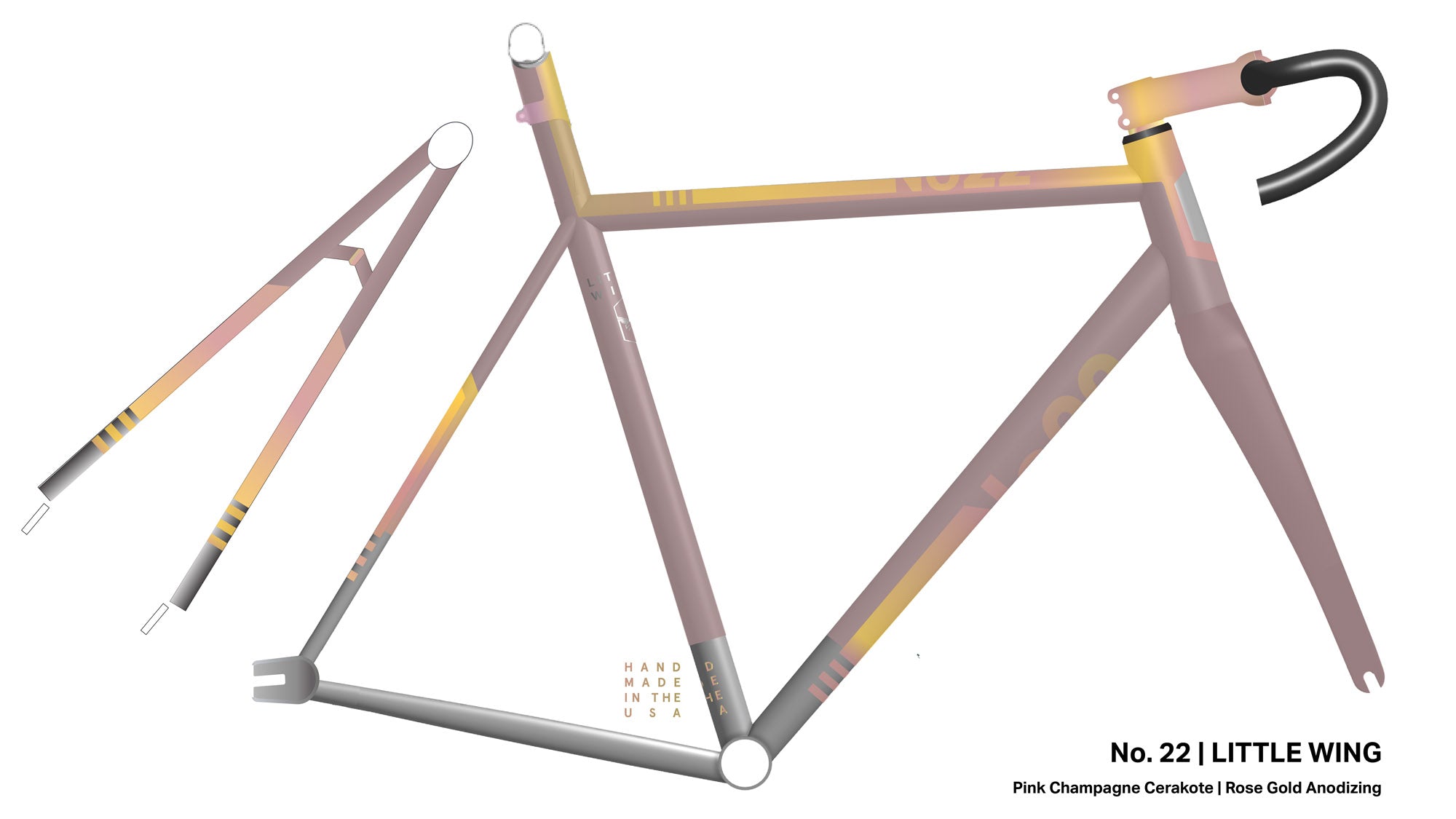

Pink Champagne | Rose Gold
Discipline Chart
Our models span many types of riding and often have talents bridging from one area to another. Our Discipline Chart helps explain which models are best for your particular riding.
