Old King

XC agility meets back trail stability.

Speed and confidence heading up and down.

Configure + Buy an Old King

Optional Finishes

Make your No. 22 truly yours. In addition to our standard raw finish, every No. 22 is available in ten optional anodized finishes. Our unique anodizing process gives us the widest range of anodized titanium colours available.

Feature rich

The Old King includes as standard what most builders charge extra for. Every Old King includes:

- Fully butted tubeset, butted in-house by CNC

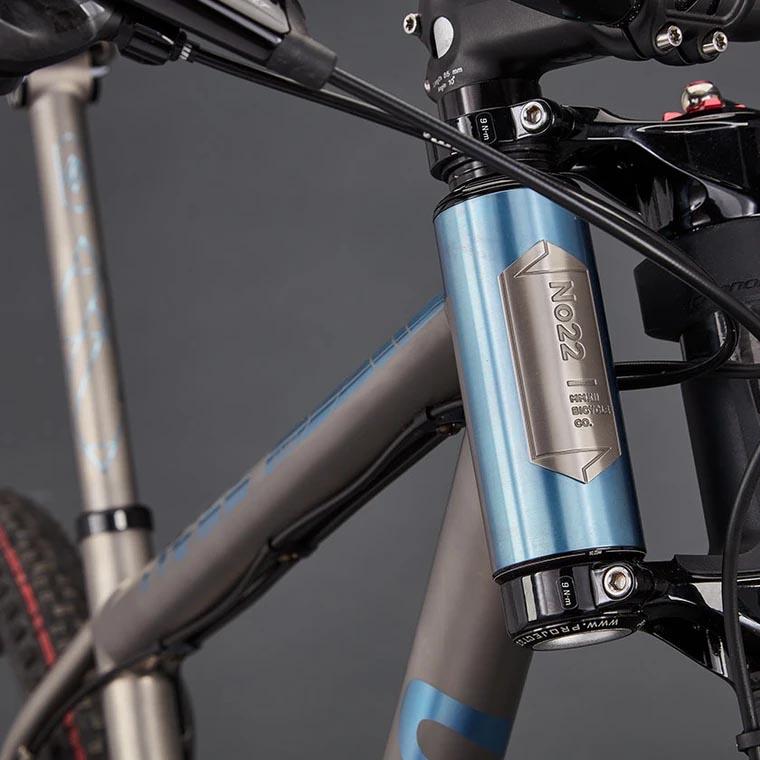

- Oversized 44mm head tube

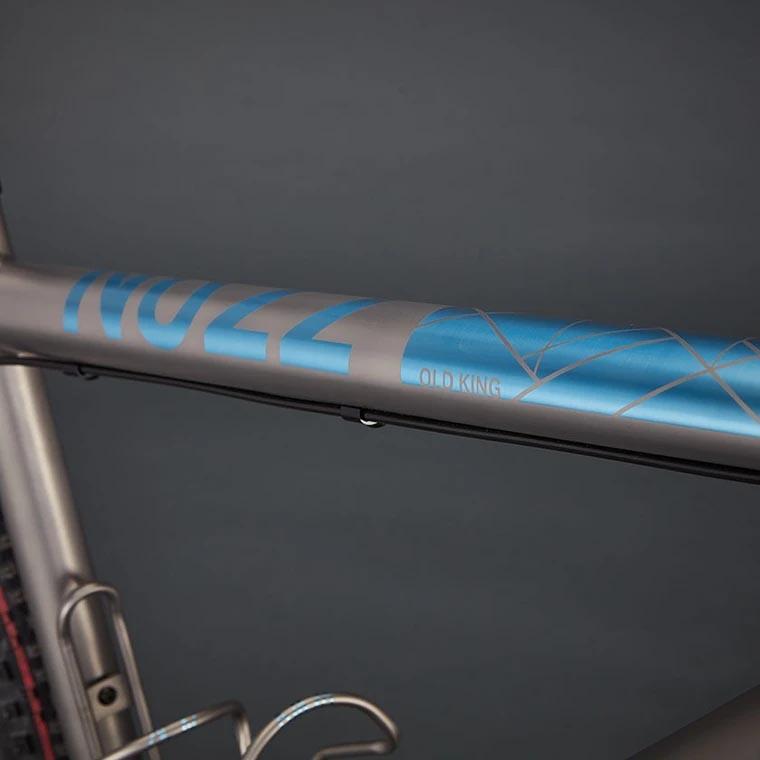

- Brushed and blasted frame graphics, with no decals or stickers

- Ten year warranty against manufacturing defects

- T47 threaded oversized bottom bracket shell

- Modular cable routing with replaceable cable stops

Details Matter

Complete your Old King build with a range of thoughtful finishing details, including:

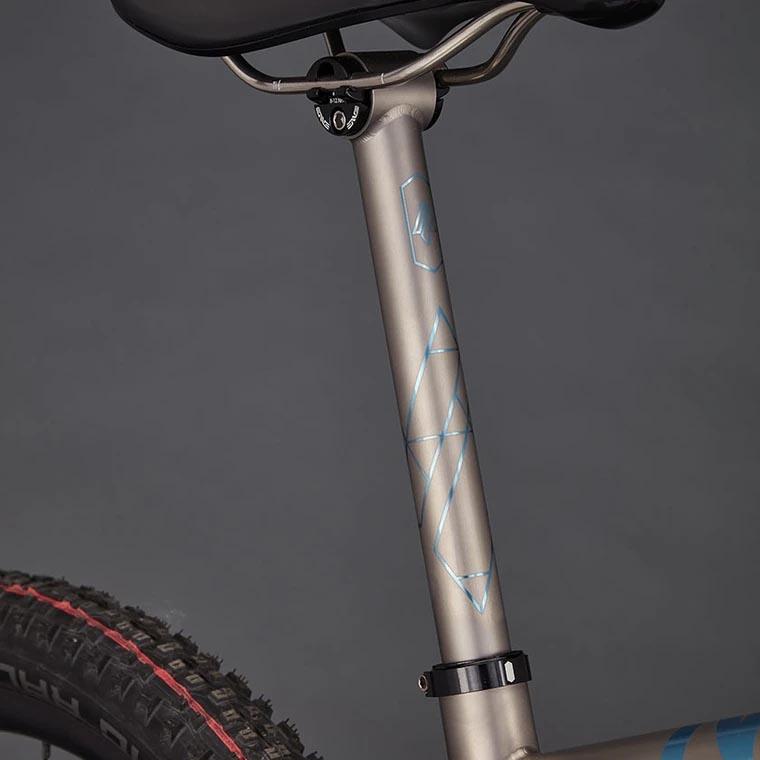

- Our made in house titanium seatpost, finished to match your frame

- Titanium bottle cages finished to match

- No. 22 aluminum stem and headset

Specifications

Brake Type Post mount disc

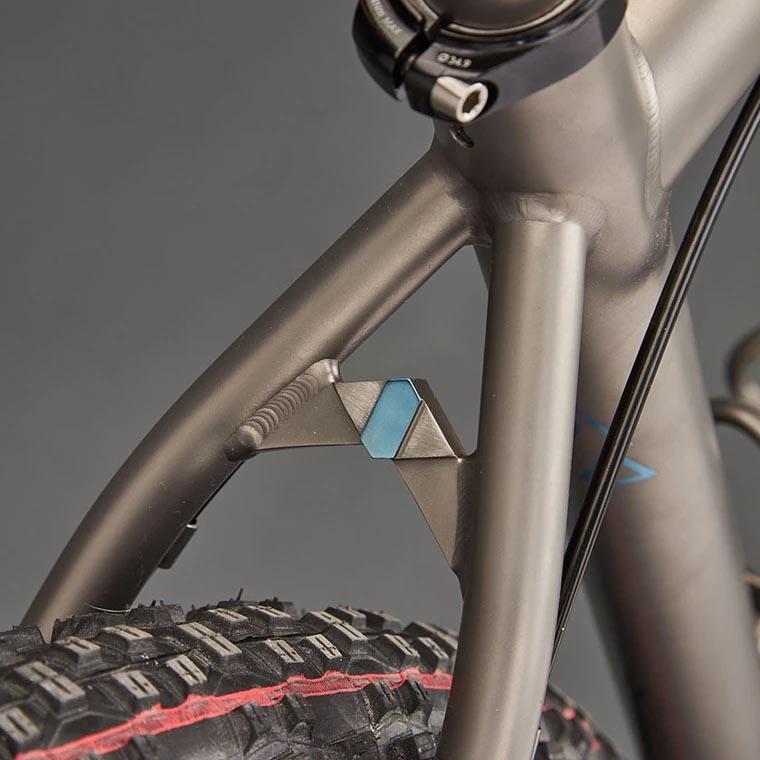

Tire Clearance 2.3" measured
Rear Axle Spacing 148x12mm Boost
Recommended Fork Travel 100-120mm
Bottom Bracket Shell T47 threaded, 73mm wide
Seatpost Size 27.2mm
Headset Type 44mm ID head tube

Geometry

Size Small Medium Large Extra Large
Effective top tube length (mm) 580 605 622 642
Seat tube, center-center (mm) 380 410 445 481
Head tube length (mm) 100 110 120 140
Seat tube angle (deg) 73.5 73.5 73.5 73.3
Head tube angle (deg) 70 70 70 70
Front center (mm) 655 680 698 719
Chain stay length (mm) 435 435 435 435
BB drop (mm) 58 58 58 58
Reach (mm) 401 423 437 451
Stack (mm) 599 609 619 637
Standover (29x2.3" tires) 799 816 838 863

Discipline Chart

Our models span many types of riding and often have talents bridging from one area to another. Our Discipline Chart helps explain which models are best for your particular riding.
