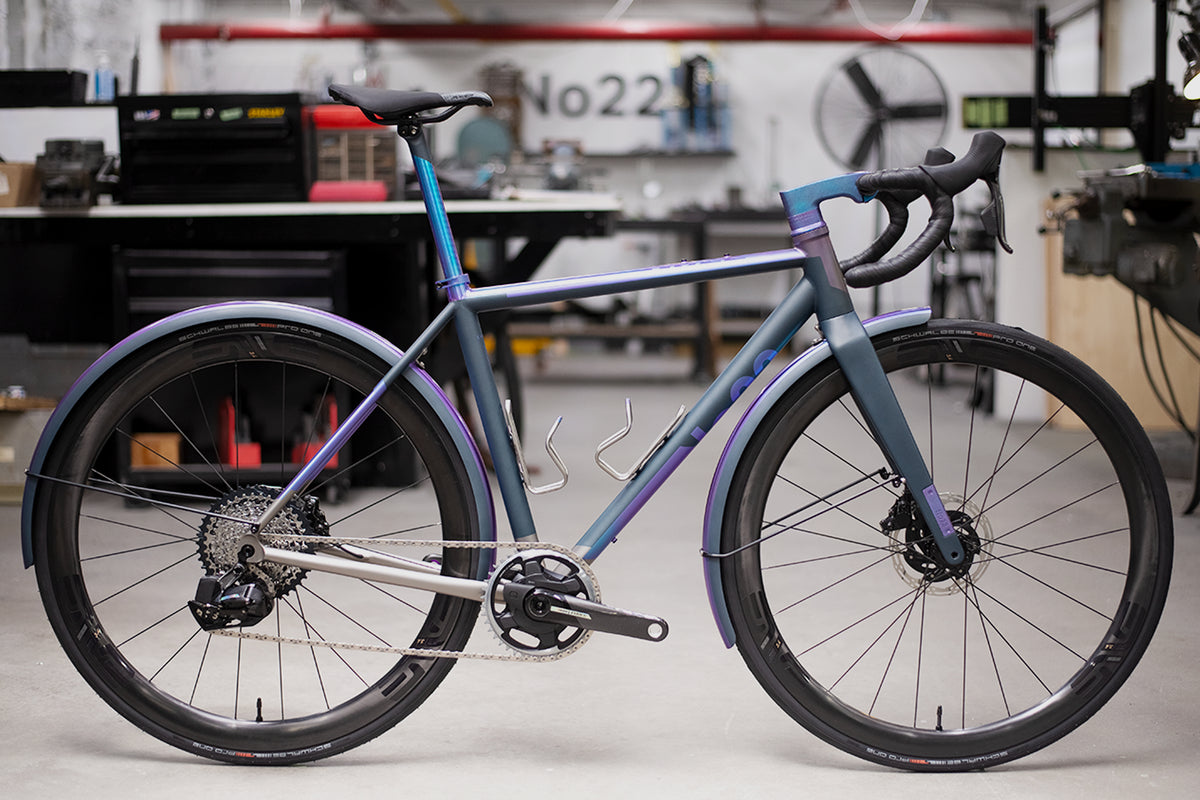

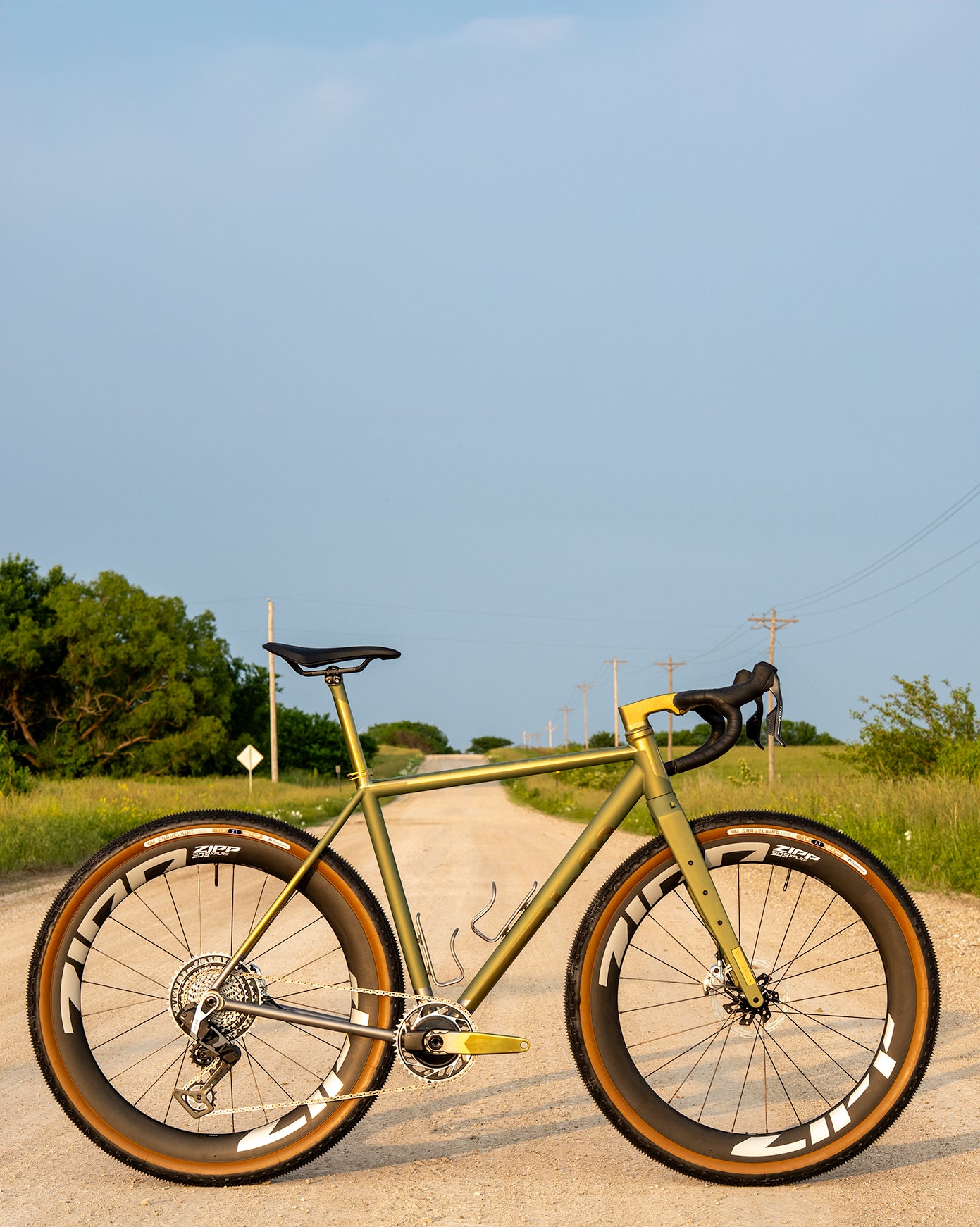

Drifter

Our bikes are all built to order, with a current lead time of approximately 10 weeks. Use the options below to select our most popular configurations, or get in touch with any specific build requests.

Pictured bike is built with optional Ultegra Di2 components.
Configuration
Size
Finish

Do it all

Starting with the 2015 NAHBS-winning Broken Arrow as its foundation, the Drifter is a bike designed for riders needing a capable bike on any road. With generous clearance for up to 40mm tires front and rear, disc brakes with standard thru-axles and any-road capable geometry, the Drifter is the most versatile bike in our lineup.



Designed for all roads

Compared to the Broken Arrow cyclocross bike, the Drifter has a lower bottom bracket for improved road and gravel handling, along with a slightly longer wheelbase and quicker steering up front. The result is a bike with stable, balanced handling through high speed gravel corners, but with quick enough responses to be ridden aggressively on-road.

Key features include:
  • Frame material: 3Al-2.5V CWSR titanium
  • Point of origin: Handmade in the USA
  • Warranty: Ten year warranty against manufacturing defects
  • Tubing sizes: Fully butted, size specific

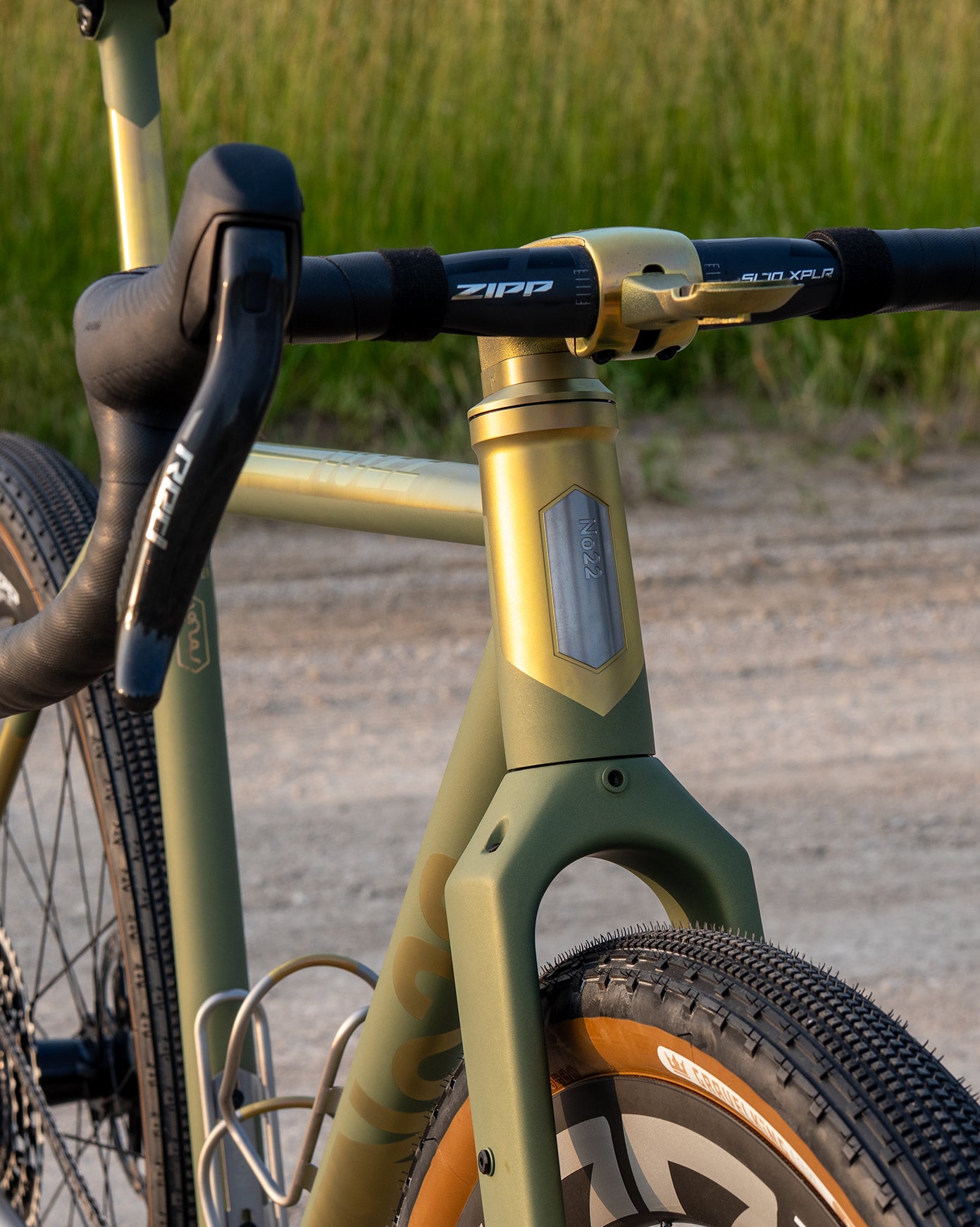

  • Head tube: 44mm internal diameter

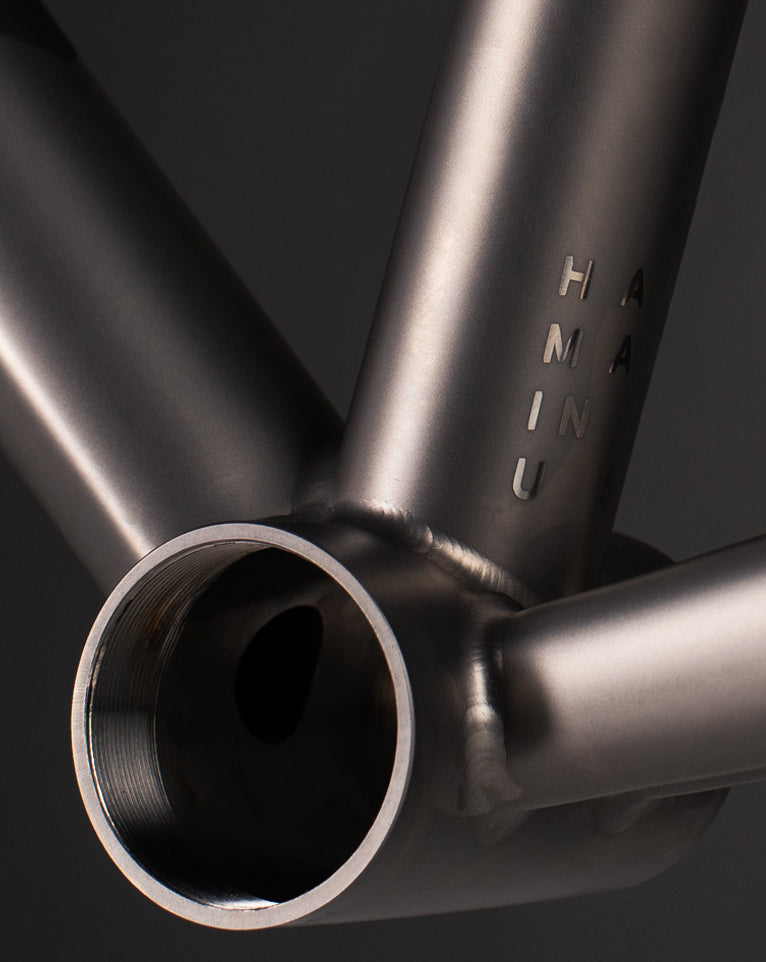

  • Bottom bracket shell: T47 threaded
  • Seat post diameter: 27.2mm
  • Tire clearance: 40mm
  • Dropout type: 142x12mm (frame) / 100x15mm (fork)
  • Brake caliper mounts: Flat mount
  • Hydraulic hose routing: Internal (frame and fork)


Beautifully detailed

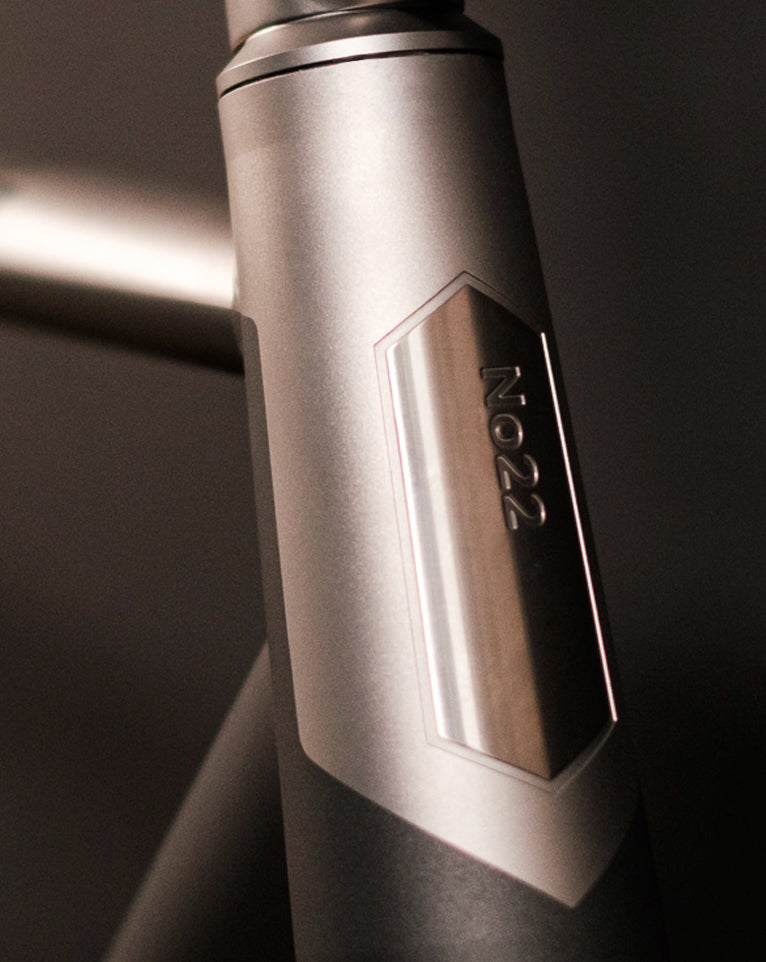

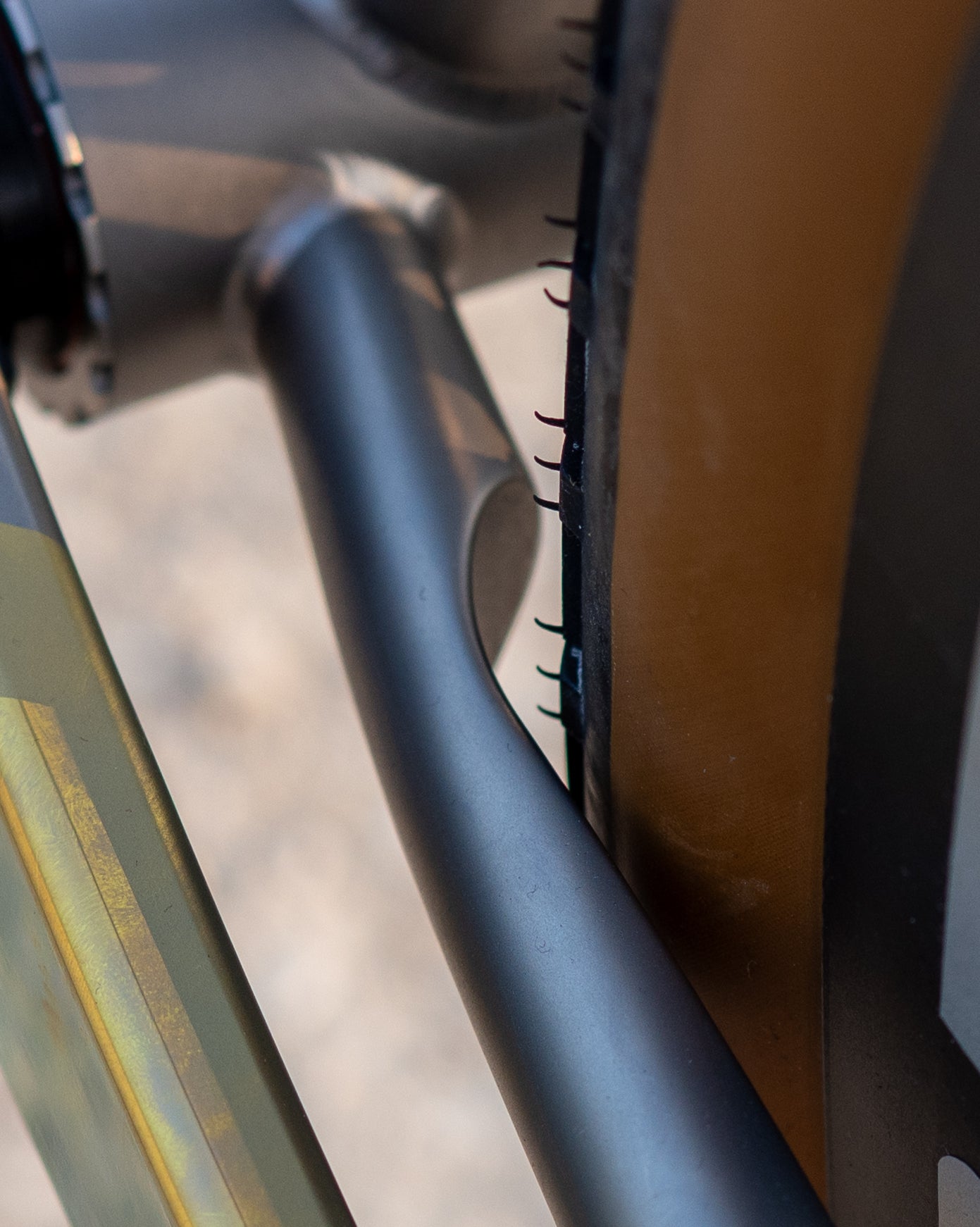

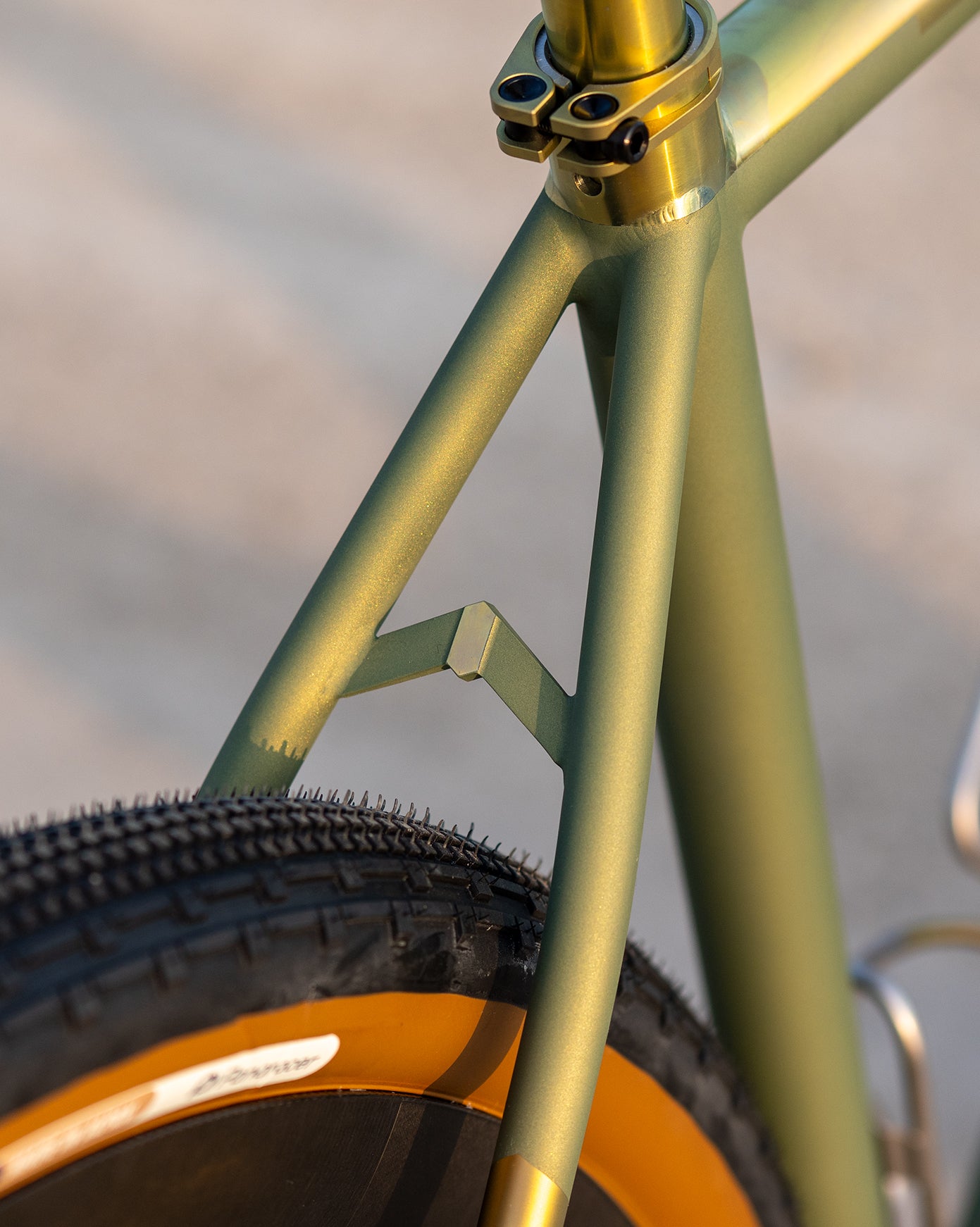

Like all No. 22 frames, the true beauty of the Drifter lies in its details. The rear brake bridge contributes to the Drifter's 40mm of tire clearance. Optional hidden fender mounts are recessed into the underside of the bridge, out of sight when fenders aren't installed.



The Drifter's flat mount disc brakes allow for clean brake caliper mounting without the use of adapters. Complimenting these low-profile mounts is internal rear brake hose routing, with the brake hose exiting the chainstay just ahead of the brake caliper.

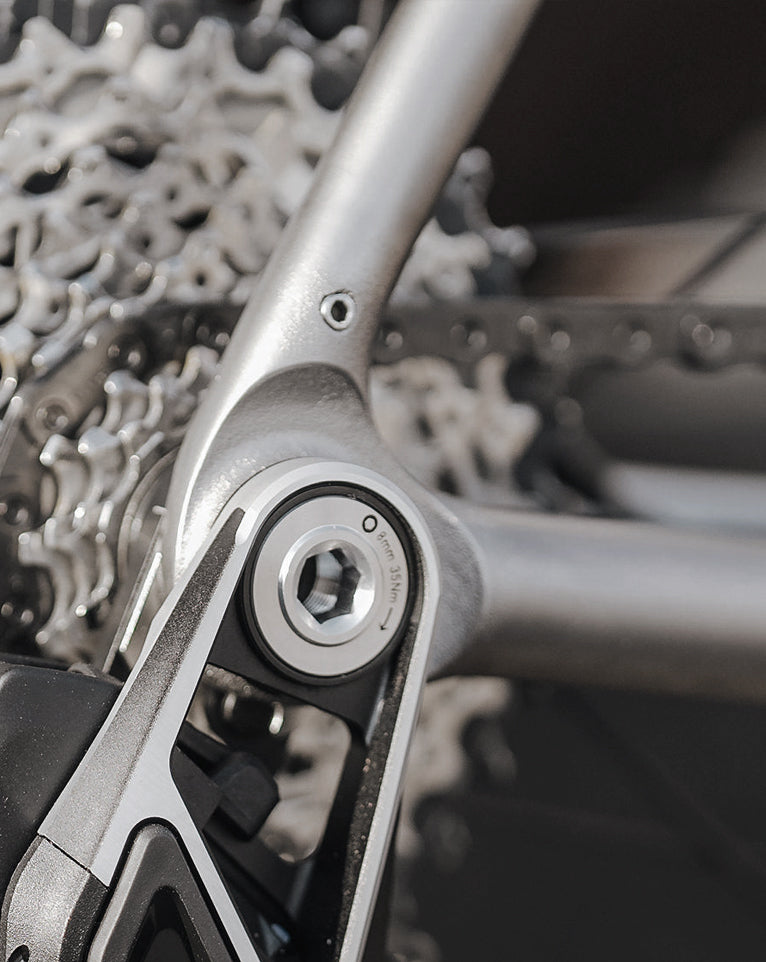

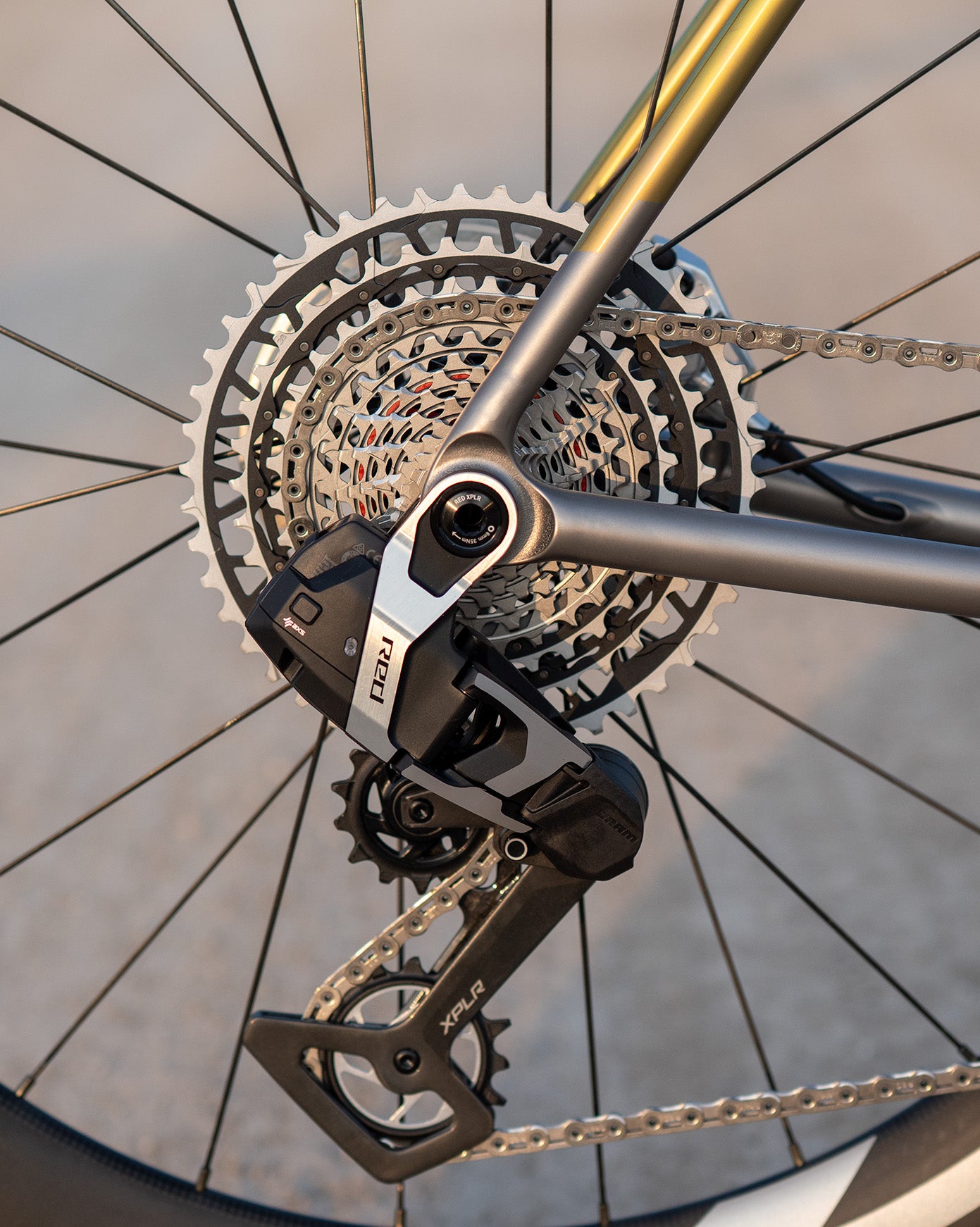

The cast titanium dropouts used on the Drifter offer a large weld surface for stiffness and durability, while paring away unnecessary material. The Drifter uses Syntace's excellent X-12 dropout interface which combines the safety of a replaceable rear hanger with the stiffness and shifting precision of a fixed hanger.



Finish Options

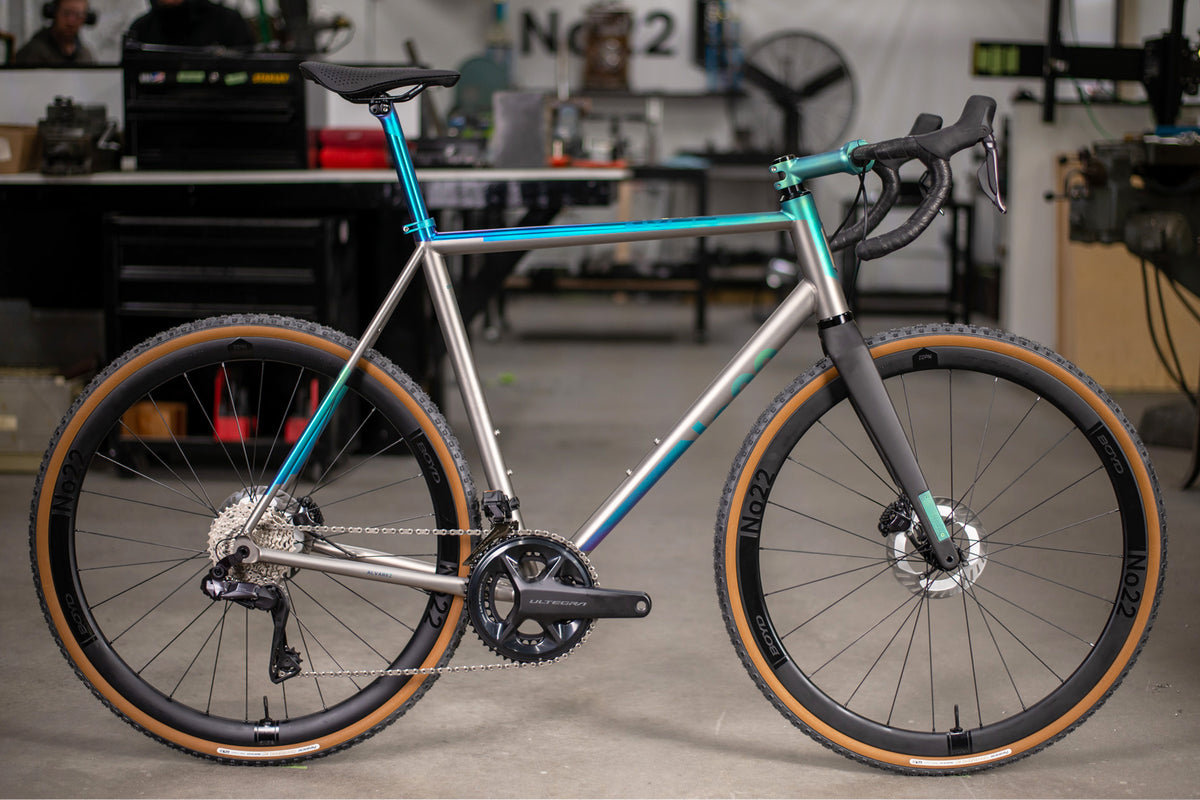

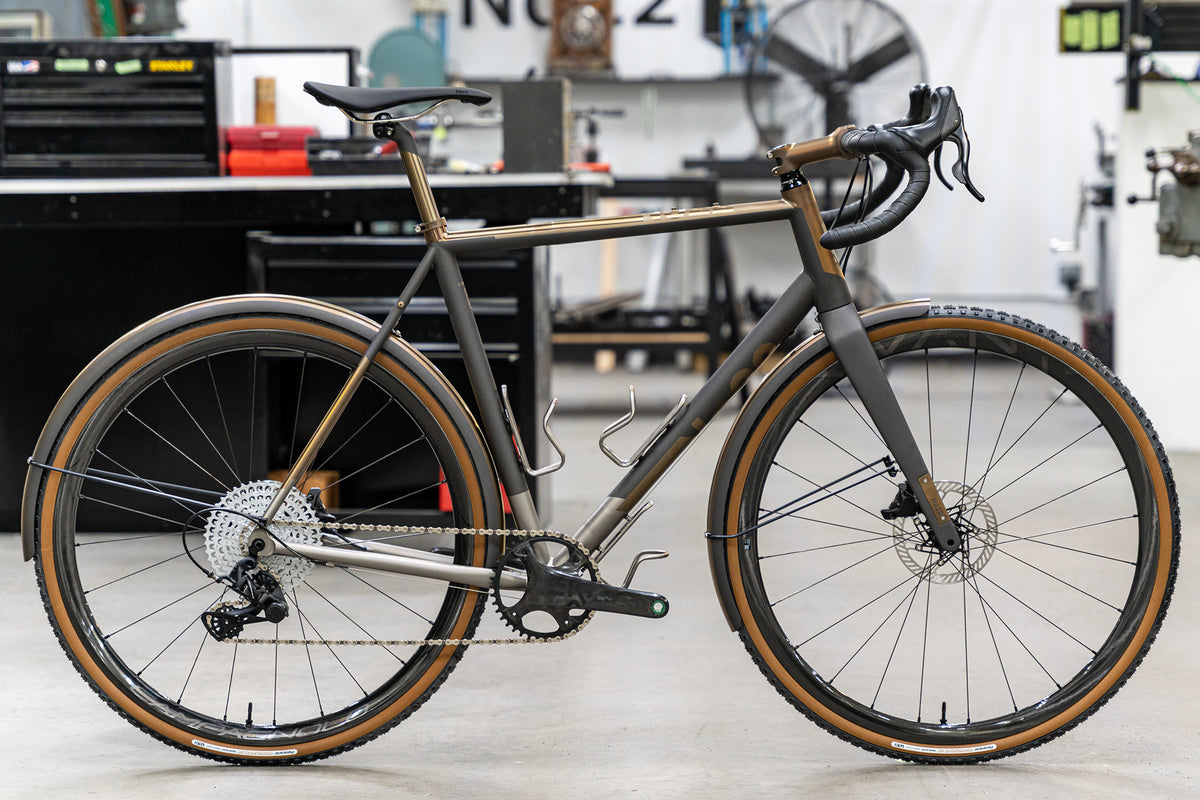

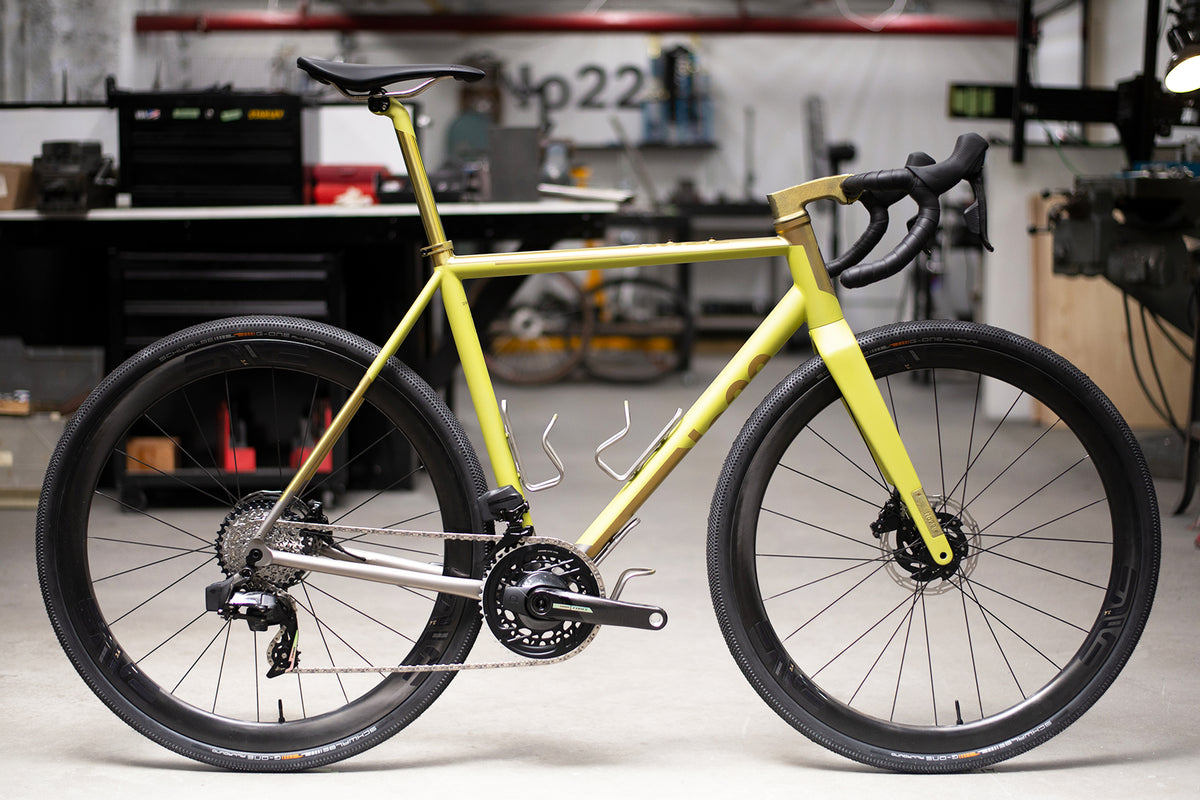

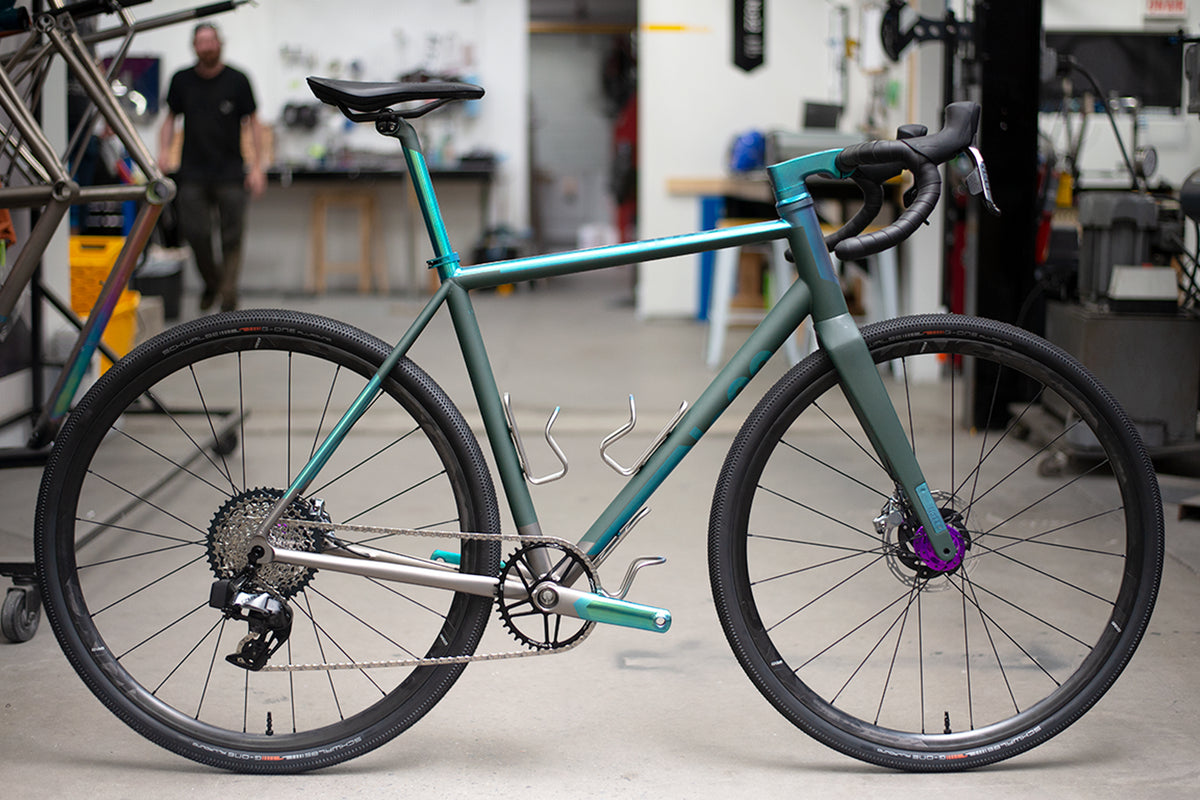

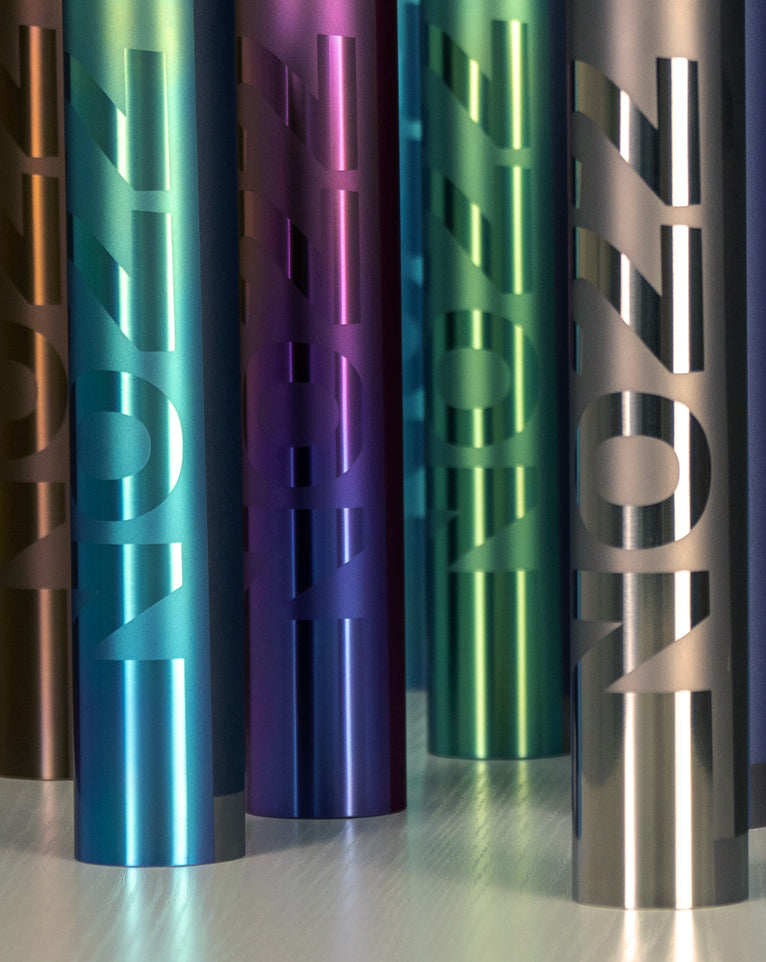

In addition to our standard "raw" finish, the Drifter is available in one of six anodized colours as a $300 option.



Configurations and Pricing

The Drifter is available in frame, frameset and complete configurations. Complete bikes are made to order, and build customization is welcomed. Please get in touch with any specific build requests.

Frame Only, $3,199
  • Frame: Drifter

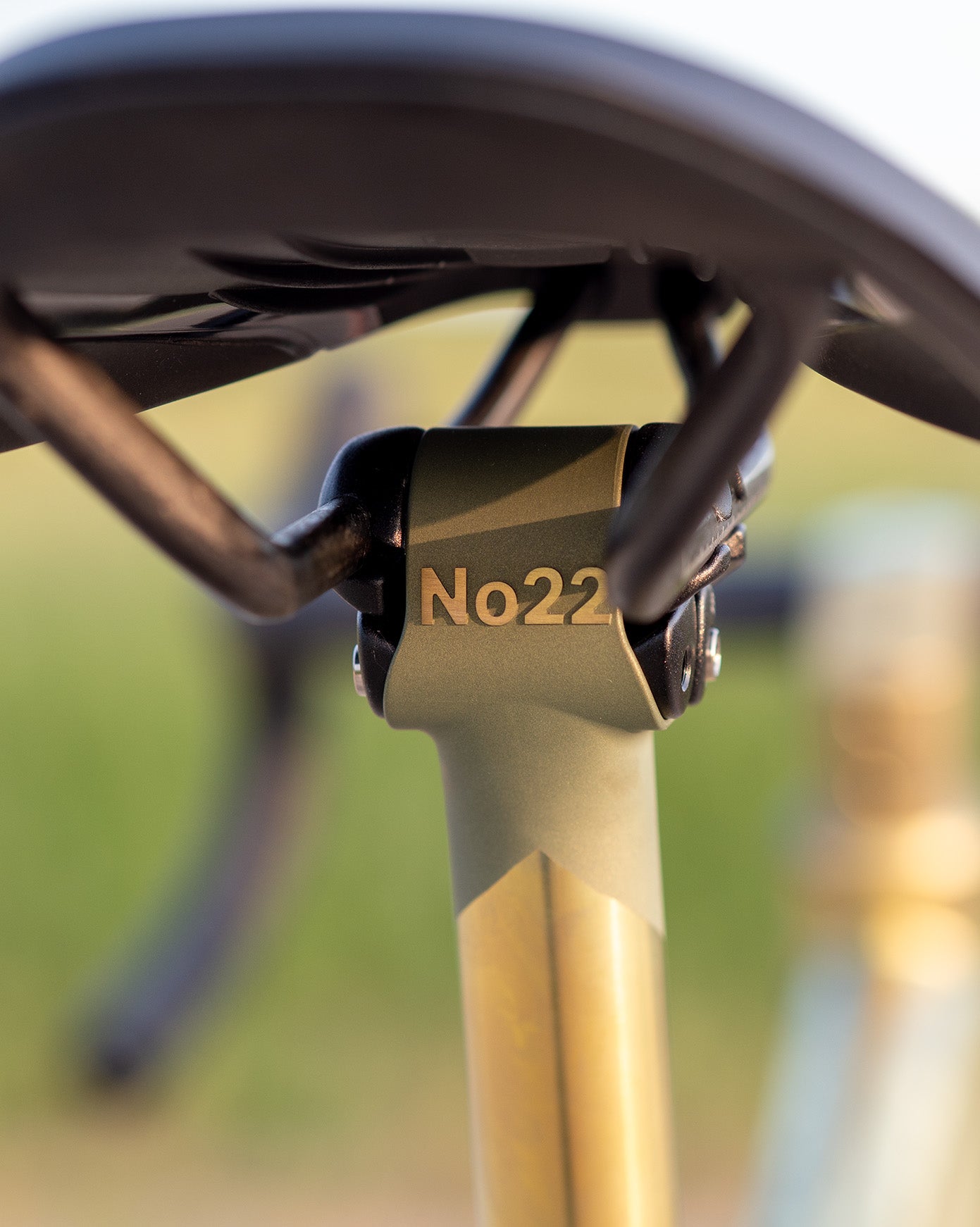

  • Seatpost clamp: No. 22
Frameset, $3,699
  • Frame: Drifter

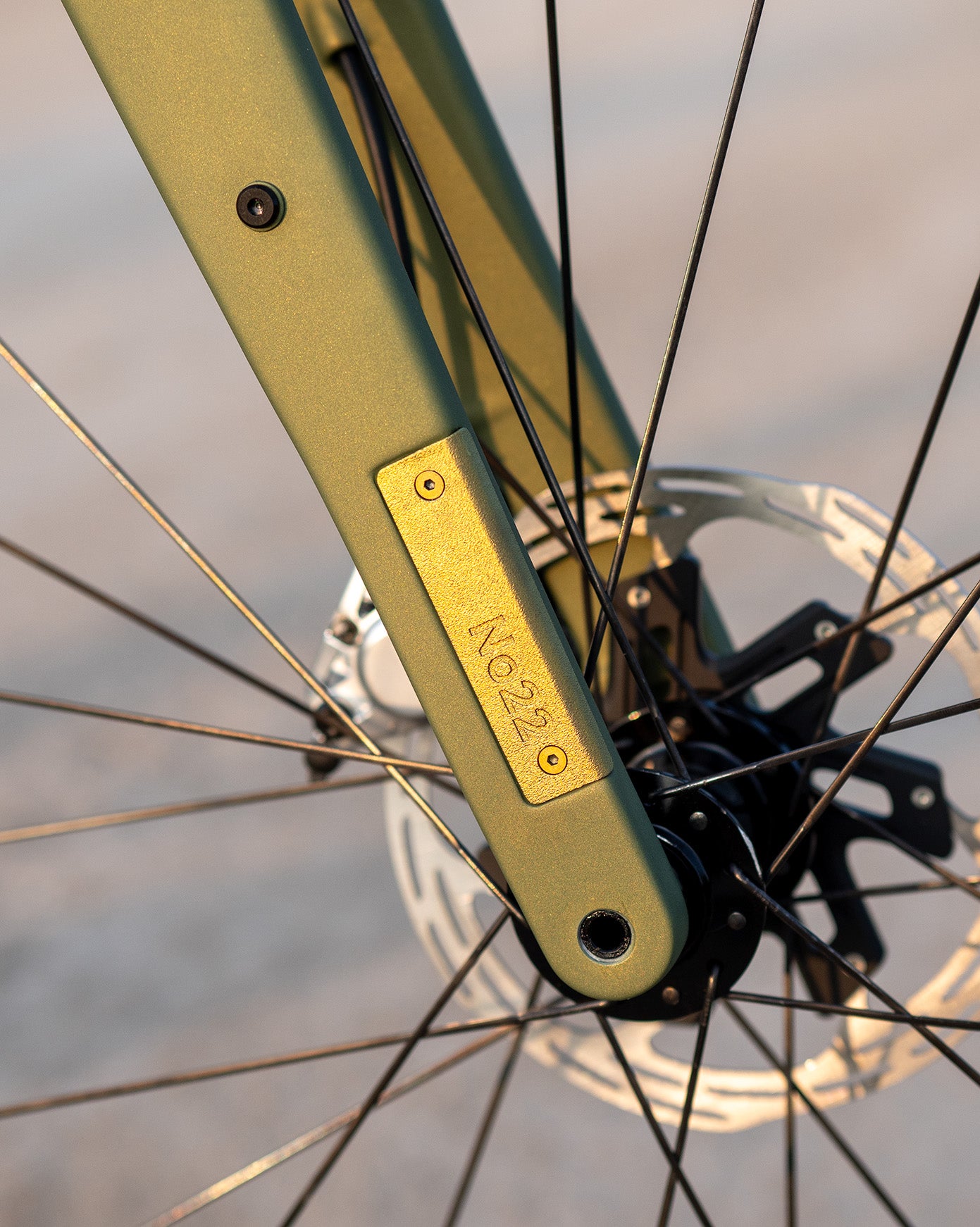

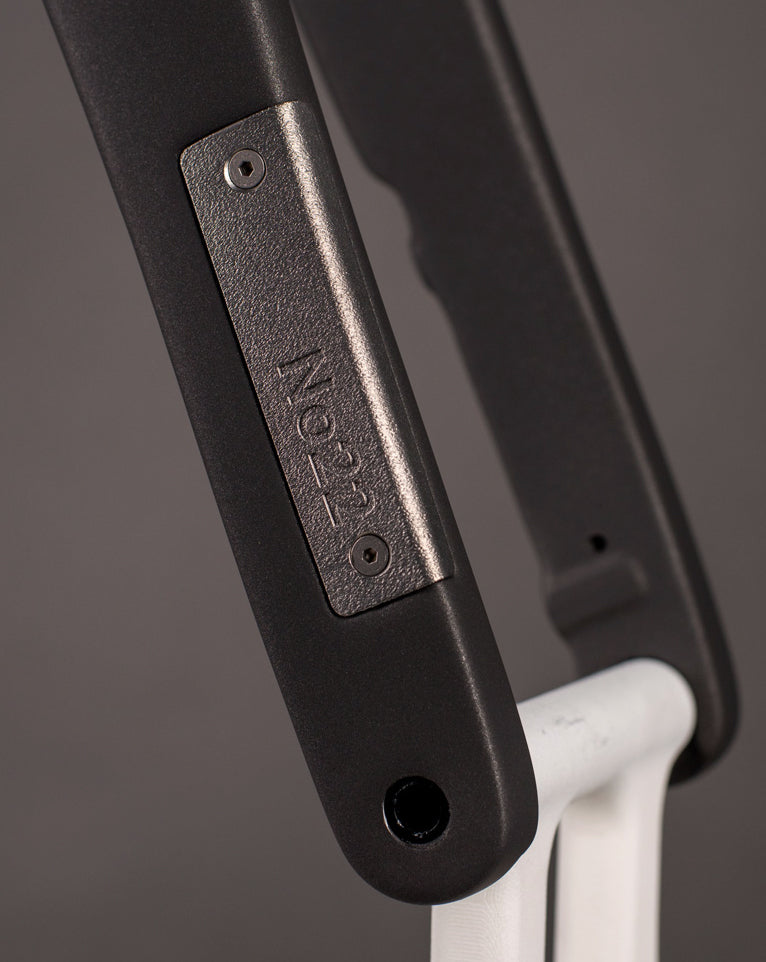

  • Fork: No. 22 CX disc tapered carbon thru-axle

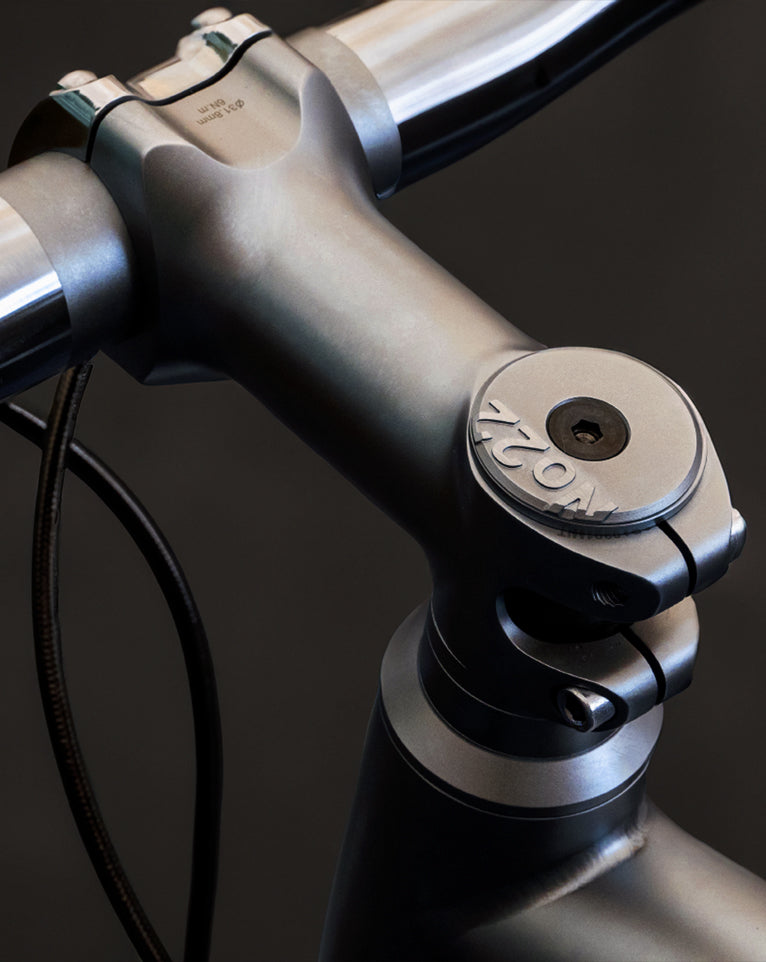

  • Headset: Chris King Inset 7
  • Seatpost clamp: No. 22
Complete, $Contact Us$
  • Frame: Drifter
  • Fork: No. 22 CX disc tapered carbon thru-axle
  • Headset: Chris King Inset 7
  • Derailleurs: Shimano Ultegra 6800
  • Shifters: Shimano ST-RS685 hydraulic
  • Brakes: Shimano RS-805 hydraulic
  • Cranks: Shimano Ultegra 6800
  • Cockpit: 3T Team Stealth, carbon bars and post
  • Wheels: Reynolds ATR disc carbon thru axle
  • Tires: Schwalbe G-One 35mm
  • Saddle: Fabric Scoop Shallow titanium


Build Options

All of our frames are made to order. Below are some of our most common custom options and pricing. For custom inquiries, please get in touch by email.

Custom options include:

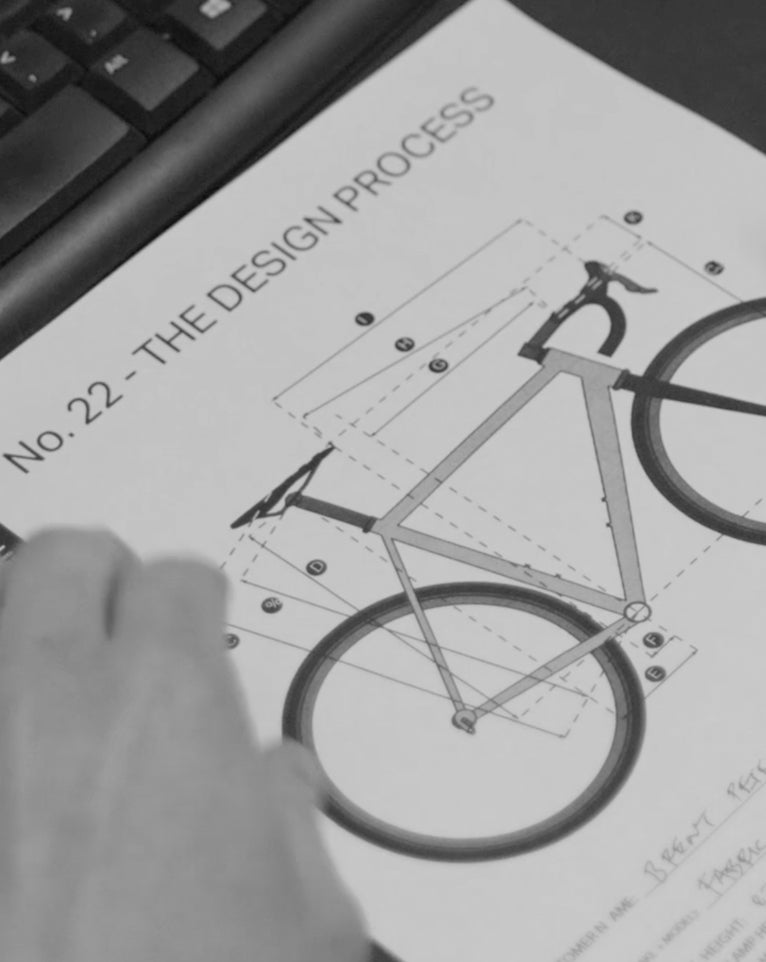

  • Custom geometry ($500)
  • Fender and rack mounts ($100)
  • Electronic cable routing ($125)
  • Alternate bottom bracket shells ($0-100)

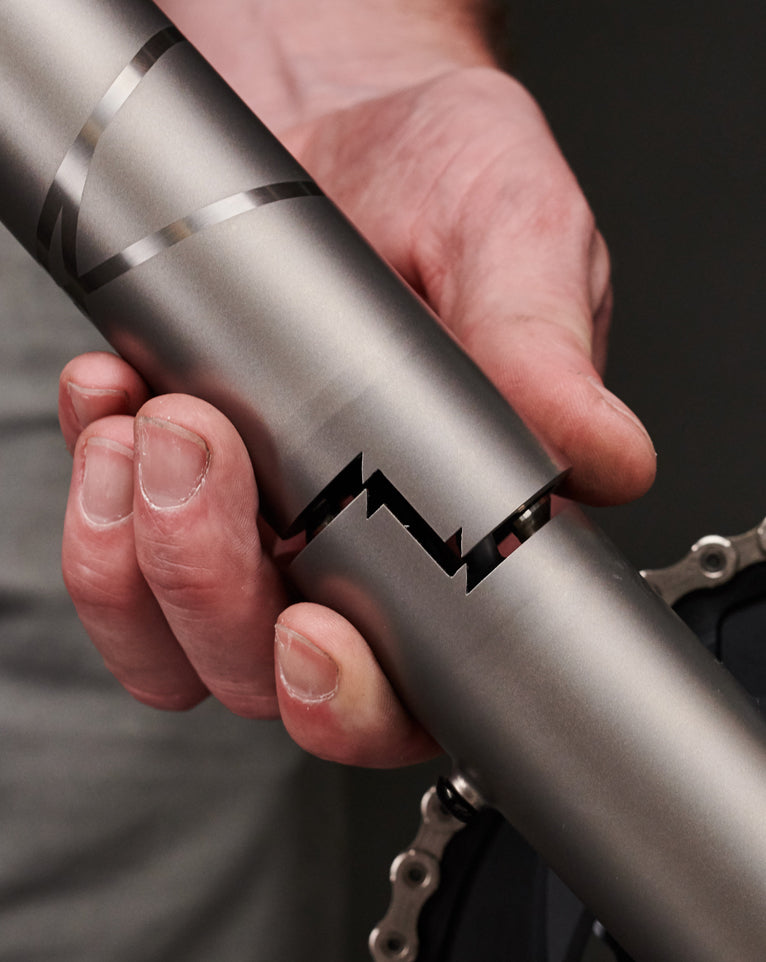

  • S&S titanium couplers ($1,000)


Geometry

Size 48cm 50cm 52cm 54cm 56cm 58cm 60cm
Effective top tube length (mm) 502 510 525 545 560 575 595
Seat tube, center-center (mm) 467 483 503 533 544 549 581
Head tube length (mm) 90 100 120 140 150 160 180
Seat tube angle (deg) 74 74 73.5 73 73 73 72.5
Head tube angle (deg) 71 71 71.2 71.3 72 72 72.3
Front center (mm) 563 571 580 595 599 614 626
Chain stay length (mm) 430 430 430 430 432 435 435
BB drop (mm) 75 75 75 75 73 70 70
Reach (mm) 347 353 357 366 378 391 399
Stack (mm) 532 542 561 582 593 599 620
